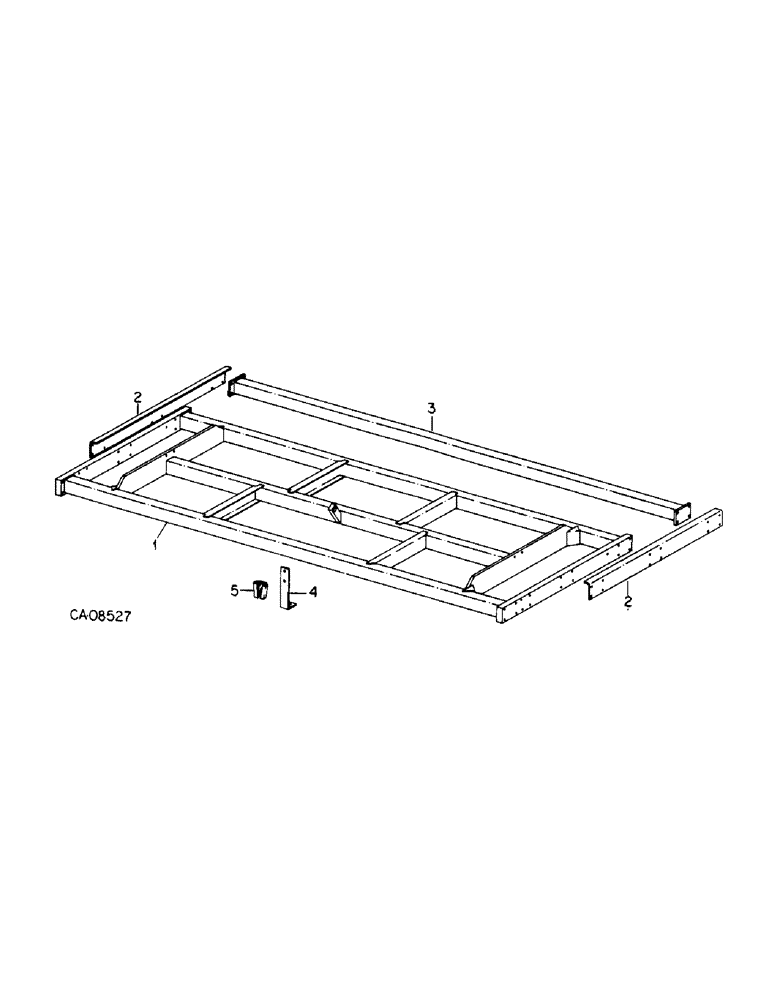

Запчасти Case IH 6500 (B-03) - FRAME, 14 FOOT

1

1256928C1

FRAME

1шт.

2

812387C1

ANGLE

outer frame

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

3

1256932C1

BAR ASSY, front support

1шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

546156R1

BRACKET

SUPPORT, SMV

1шт.

5

398976R1

BRACKET

SMV mounting

1шт.

596802R1

BOLT,Hex, 5/8" - 18 x 4 1/4", Gr 2

5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
