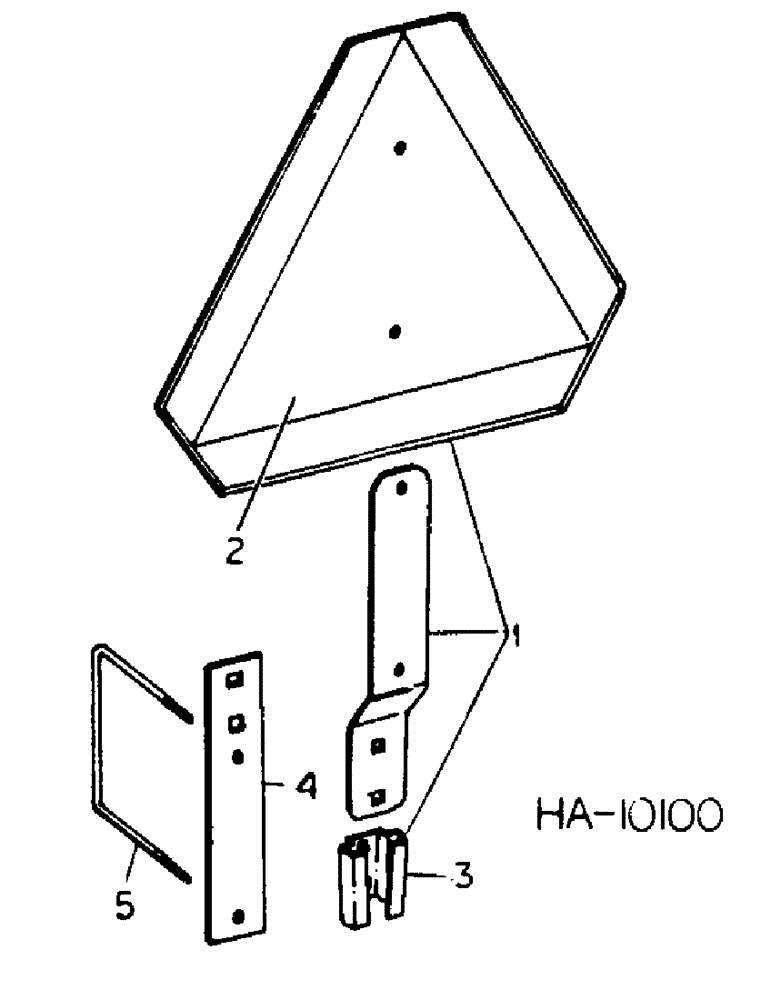

Запчасти Case IH 6500 (B-19) - SLOW MOVING VEHICLE EMBLEM, PRODUCT GRAPHICS

1

407220R1

PRODUCT GRAPHIC

PACKAGE, SMV emblem, steel

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, SMV emblem film kit

1шт.

3

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

608328R1

BAR

SMV emblem mounting

1шт.

5

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U-BOLT, mounting bar

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21801R1

WASHER

.281 x .734 x .056

2шт.

80542C91

PACKAGE

product graphics, consists of

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general warning

1шт.

1284004C1

DECAL

PRODUCT GRAPHIC, important

1шт.

SERIAL NO. PLATE (NSS)

1шт.

1306002C1

RIVET, serial no. plate

2шт.

175311C1

REFLECTOR

safety red

2шт.

174732C1

REFLECTOR

amber

1шт.

96115C1

DECAL

PRODUCT GRAPHIC, model desination 6500 model (replaces 1284003C1)

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
