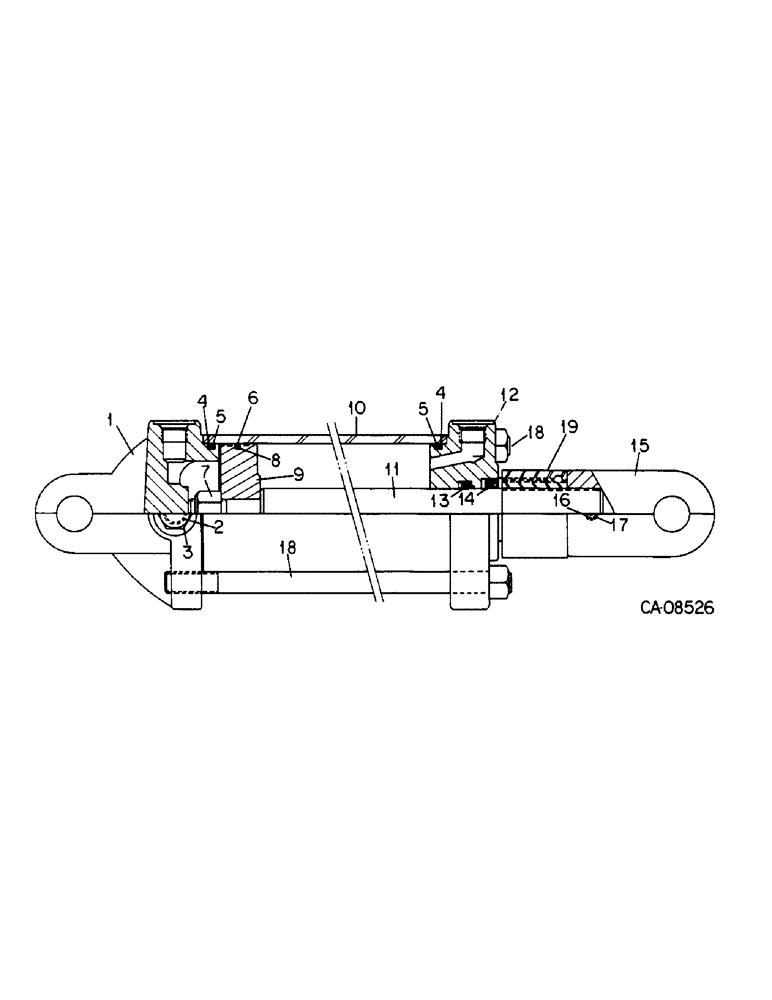

Запчасти Case IH 6500 (B-18) - HYDRAULIC CYLINDER, 4 X 8 DOUBLE ACTING

1282032C91

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8

1шт.

1

1272919C1

CYLINDER HEAD

HEAD, rear

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, also part of kit

1шт.

3

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

4

WASHER, back-up, see note (NSS)

2шт.

5

O-RING, front & rear head, see note (NSS)

2шт.

6

RING, piston, see note (NSS)

1шт.

7

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC P/T lock type 8

1шт.

8

O-RING, piston, see note (NSS)

1шт.

9

149930C1

PISTON

1шт.

10

SLEEVE (NSS)

1шт.

11

1282367C1

ROD

piston

1шт.

12

1282337C1

GLAND

HEAD, front

1шт.

13

SEAL, see note (NSS)

1шт.

14

WIPER, see note (NSS)

1шт.

15

1282366C1

RAM FORK

CLEVIS, piston rod (replaces 1282336C1)

1шт.

16

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C/PT znp hdl/s set

1шт.

17

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, clevis

1шт.

18

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT, tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

19

1282266C1

COLLAR

ASSY, double stop, not part of cylinder assy

1шт.

79979C1

GASKET KIT

KIT, seal, consists of ref no. 2, 4, 5, 6, 8, 13 & 14

1шт.
