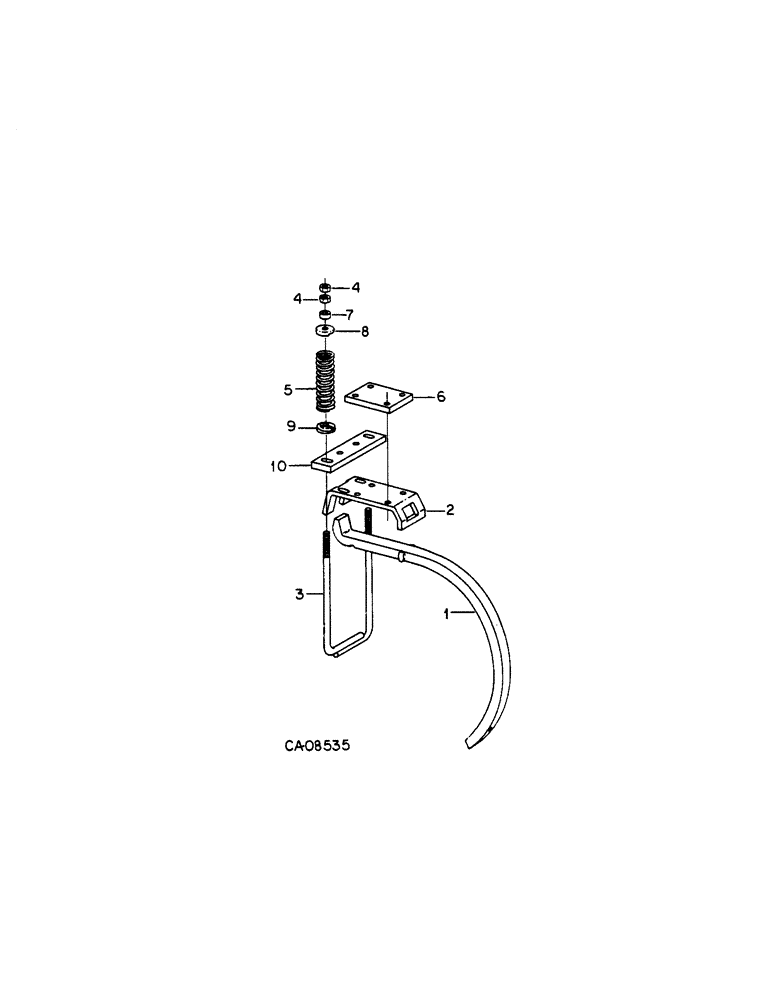

Запчасти Case IH 6500 (B-12[A]) - CUSHION CLAMP AND SHANK CENTER SHANK, 14 FOOT

1

813487C1

POINT

SHANK, heavy duty 26.5 in.

1шт.

2

609131R1

BRACKET

clamping

1шт.

3

1284009C1

U-BOLT,224mm W x 400mm L

U-BOLT, center shank

1шт.

Center shaft: Ref 3 another u-bolt used 91154C1

1шт.

4

280954

NUT,3/4"-10, G5

4шт.

5

609133R1

VALVE SPRING

SPRING, trip

2шт.

Ref#5 Another spring used is 91155C1 11/15/96

1шт.

6

592239R1

BLOCK

shank clamping

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

7

810880C1

SPACER

spring

2шт.

REF#7 Another spacer used is 91151C1 11/15/96

1шт.

8

608348R1

RETAINER

spring upper

2шт.

REF#8 Another retainer used is 91148C1 11/15/96.

1шт.

9

608349R21

RETAINER

PACKAGE, spring lower seat service, includes 2 lower seats

1шт.

10

1256969C1

BAR

center shank support

1шт.
