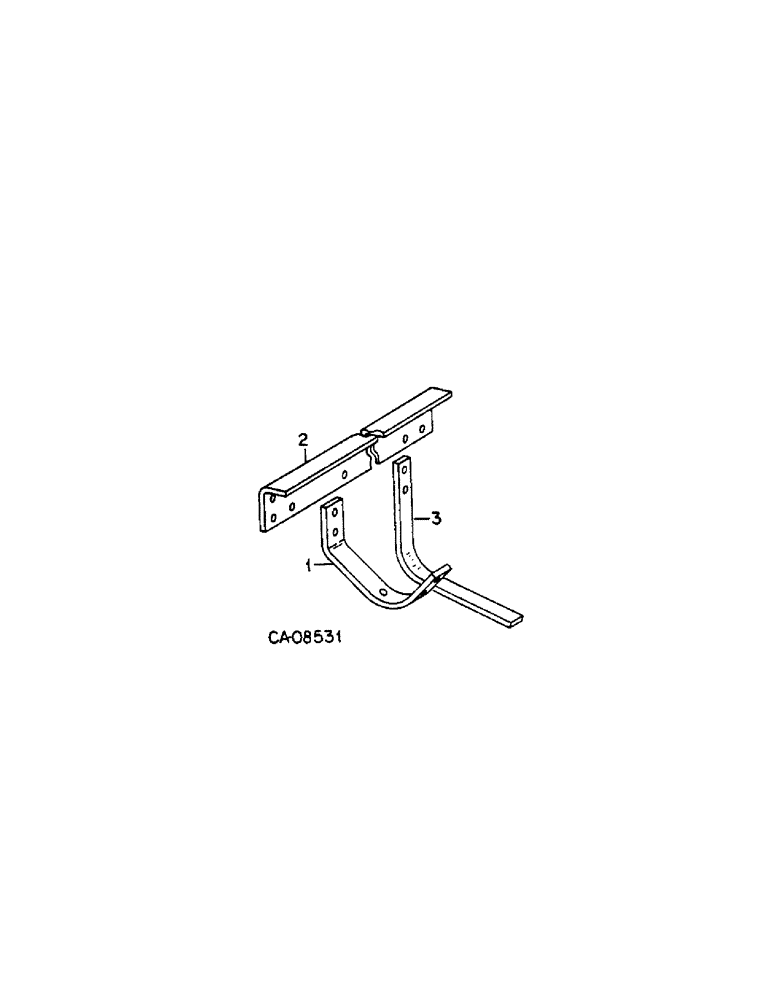

Запчасти Case IH 6500 (B-11[A]) - TRASH BARS

1

1256954C1

BAR

trash bar support

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

1256961C1

BAR

TRASH, 11 foot

2шт.

2

1256975C1

BAR

TRASH, 14 foot

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

3

1256963C1

BAR

trash, 10 - 11 foot, 14 - 14 foot

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120387

WASHER,3/8" x 3/4" x .060"

.374 x .750 x .054, 20 - 11 foot, 28 - 14 foot

1шт.

REFER TO TRASH BARS:

1шт.

REF#2 1256961C1 HAS 18 HOLES MEASURES 1235.4MM.

1шт.

REF#2A 1256975C1 HAS 22 HOLES MEASURES 1623.4MM 11/15/96

1шт.
