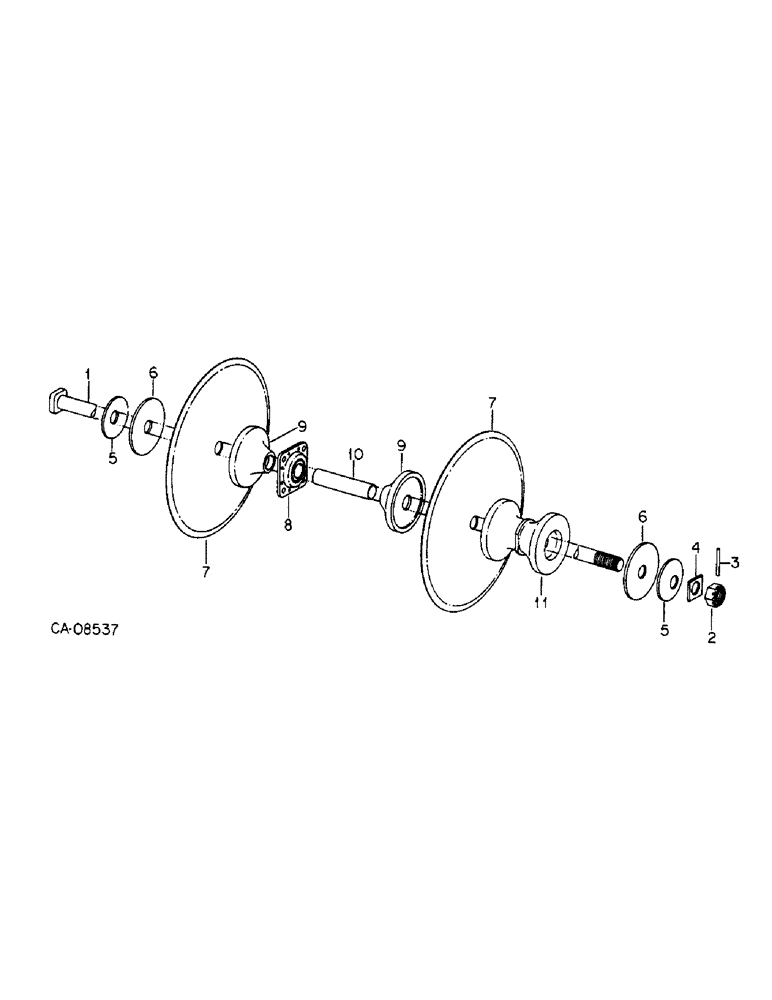

Запчасти Case IH 6500 (B-10) - GANG UNIT

1

1256977C1

SQUARE BOLT

arbor 57-7/8 in., 11 foot

2шт.

1

1256978C1

SQUARE BOLT

arbor 73-1/4 in., 14 foot

2шт.

2

272083

BRACKET

1-1/2 pln slt type 5

2шт.

3

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

2шт.

4

488836R2

NUT

WASHER, spacer

2шт.

5

139773C1

WASHER

WASHER, Belleville type end

4шт.

6

1256982C1

WASHER

WASHER, gang end flat

4шт.

7

28597R1

DISC

COULTER FLAT 20"

1шт.

8

ST491A

BALL BEARING,45mm ID

BEARING, gang

4шт.

8

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

4шт.

9

1256973C1

SPOOL

gang bearing

8шт.

10

1256989C1

BUSHING,38.91mm ID x 44.45mm OD x 195mm L

arbor bolt tube

4шт.

11

1256974C1

SPOOL

gang spacing, 10 - 11 foot, 14 - 14 foot

1шт.
