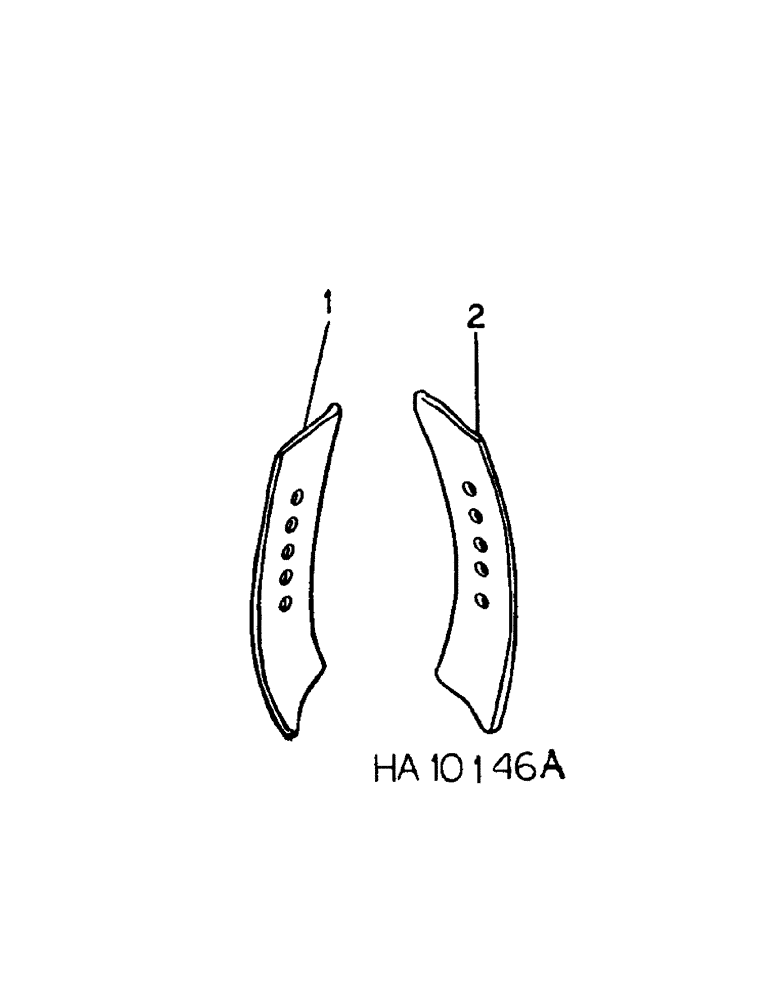

Запчасти Case IH 6500 (B-09) - GROUND WORKING TOOLS

1

812384C3

SHOVEL

left throw twisted

1шт.

2

812385C3

SHOVEL

right throw twisted

1шт.

602307R1

CARRIAGE BOLT,#3, 1/2" x 2 1/4"

BOLT, 1/2-13 x 2-1/4 no. 3 type 5 plow, (per shovel)

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , per bolt 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .090 (per bolt)

1шт.
