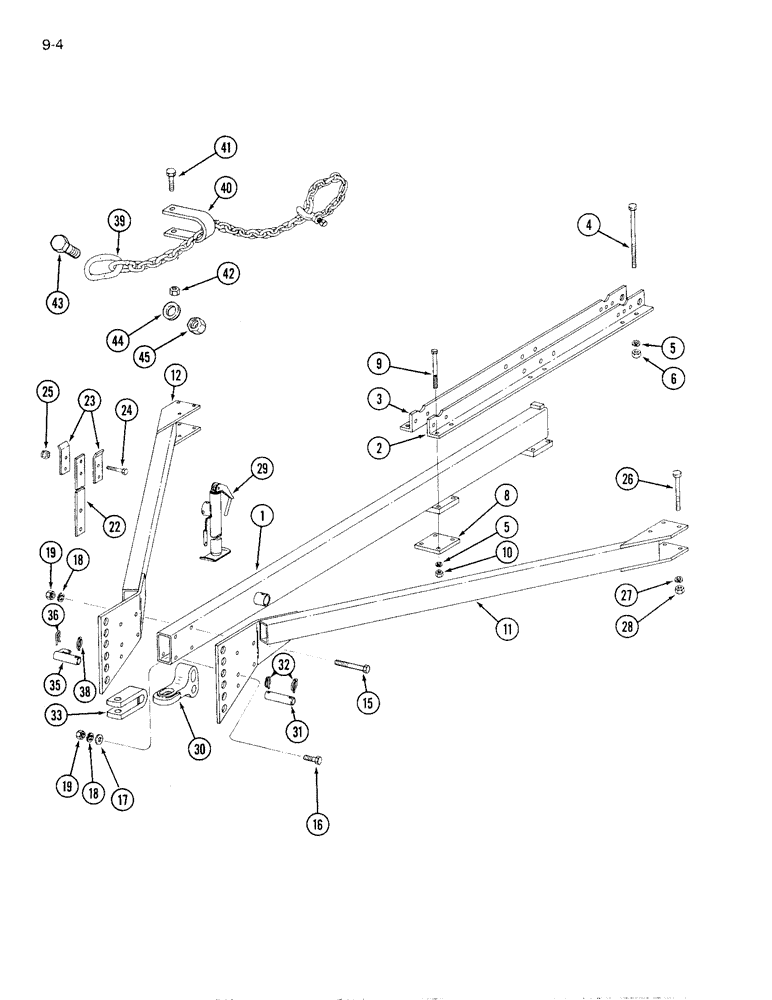

Запчасти Case IH 6500 (9-04) - HITCH (09) - CHASSIS/ATTACHMENTS

1

812313C1

TUBE,2878.4 mm Length

ASSEMBLY - hitch

1шт.

2

1256958C1

ANGLE

- hitch tube, left

1шт.

3

1256959C1

ANGLE

- hitch tube, right

1шт.

4

28118R1

BOLT,Hex, 5/8" - 11 x 12", Gr 5

- hex, 5/8 NC x 12 inch

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

8

812309C1

BAR

- hitch

1шт.

9

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch (11 foot frame)

4шт.

9

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, Grade 8 (14 foot frame)

4шт.

10

425-1010

NUT,5/8"-11, G5

(11 foot frame) 5/8"-11, G5

4шт.

10

429-1010

NUT,5/8"-11, G8

(14 foot frame) 5/8"-11, G8

4шт.

11

1256985C1

BEAM

ASSEMBLY - hitch brace, left

1шт.

12

1256986C1

BEAM

ASSEMBLY - hitch brace, right

1шт.

15

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

2шт.

16

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

17

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

18

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

19

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

22

810881C2

STRAP

BRACKET - hose support

1шт.

23

58644C1

HOLDER

- hydraulic hose

2шт.

24

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

25

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

26

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 inch NC x 6 inch

6шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

28

425-1010

NUT,5/8"-11, G5

6шт.

29

810363C91

JACK ASSY.

JACK ASSEMBLY - hitch

1шт.

30

810442C2

TOW BAR

TONGUE - hitch, rigid, Heavy Duty (Fits Both)

1шт.

31

1256991C1

PIN

- hitch

2шт.

32

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - click, hitch

2шт.

33

1279227C2

TRAILER HITCH

CLEVIS ASSEMBLY - hitch, (Fits Both)

1шт.

35

1256992C1

PIN ASSY.

PIN - clevis, hitch

1шт.

36

520175R1

CLIP

PIN - cotter, quick attach

1шт.

38

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - click, hitch

1шт.

39

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety

1шт.

40

148558C1

CLEVIS

- chain

1шт.

41

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

42

425-1010

NUT,5/8"-11, G5

1шт.

43

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

44

26512R1

WASHER

- flat, 0.781 x 2.000 x 0.164 inch

1шт.

45

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.
