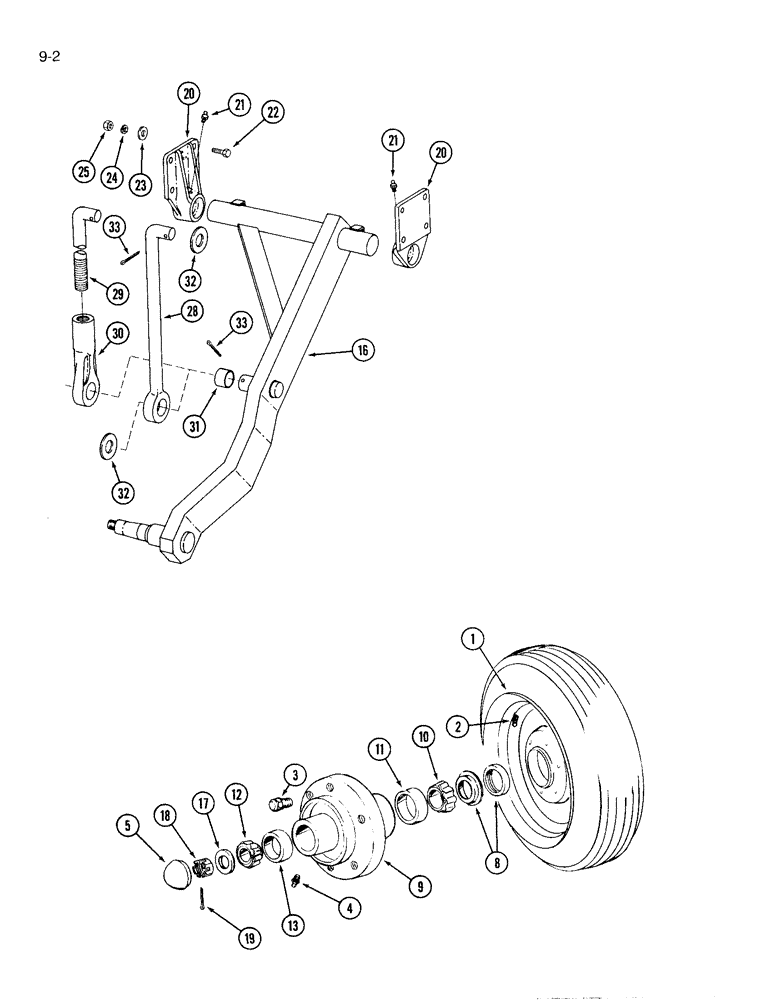

Запчасти Case IH 6500 (9-02) - TRANSPORT WHEELS AND AXLE (09) - CHASSIS/ATTACHMENTS

1

1277504C1

RIM

WHEEL - transport, 15 inch (For 11L x 15 tubeless 8 ply tire)

2шт.

2

810769C1

VALVE

- tubeless tire, steel

2шт.

3

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING - lube, 1/4 inch straight

2шт.

5

663906R1

CAP

- wheel hub

2шт.

8

606556R91

OIL SEAL

SEAL - wheel hub, oil

2шт.

9

606468R21

HUB

ASSEMBLY - wheel

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner, 1-5/8 inch ID

1шт.

11

663558R1

BEARING CUP

CUP - bearing, inner 2-57/64 inch OD

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

13

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

16

812429C93

AXLE

ASSEMBLY - wheel

2шт.

17

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

18

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

19

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

20

608315R1

SUPPORT

- axle, long

4шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

22

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

23

22771R1

WASHER

- flat, 21/32 x 1-1/4 x 1/32 inch

8шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

25

425-1010

NUT,5/8"-11, G5

16шт.

28

1284015C1

ROD

- rigid link

1шт.

29

608324R1

BAR

ROD - adjustable lift

1шт.

30

1284014C1

EYE

- lift link

1шт.

31

112886C1

BUSHING

- rod, lift

2шт.

32

615274R1

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-9/32 x 2-1/2 x 7/64 inch

4шт.

33

32-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.
