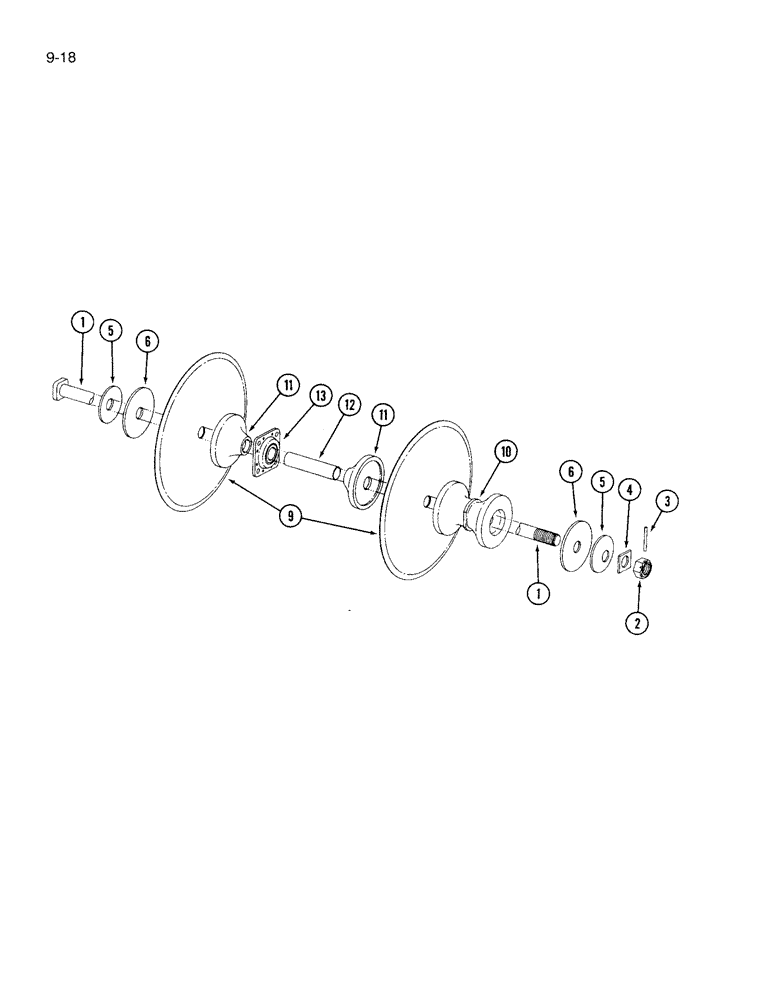

Запчасти Case IH 6500 (9-18) - DISK GANG ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

1256977C1

SQUARE BOLT

- arbor (11 foot frame)

2шт.

1

1256978C1

SQUARE BOLT

- arbor (14 foot frame)

2шт.

2

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1/2 inc NC

2шт.

3

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

2шт.

4

488836R2

NUT

WASHER - spacer (if required)

2шт.

5

139773C1

WASHER

WASHER - end, Belleville

4шт.

6

1256982C1

WASHER

WASHER - gang end, flat

4шт.

9

28597R1

DISC

COULTER FLAT 20" [See note A]

1шт.

10

1256974C1

SPOOL

- gang spacing (See Note B)

1шт.

REF. 10: IF DLR. IS LOOKING FOR SPOOL THAT IS 7.36" X 4.49", ORDER 1263631C1. BJR.

1шт.

11

1256973C1

SPOOL

- gang bearing

8шт.

12

1256989C1

BUSHING,38.91mm ID x 44.45mm OD x 195mm L

- tube, arbor bolt

4шт.

13

ST491A

BALL BEARING,45mm ID

BEARING ASSEMBLY - arbor

4шт.

13

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

4шт.
