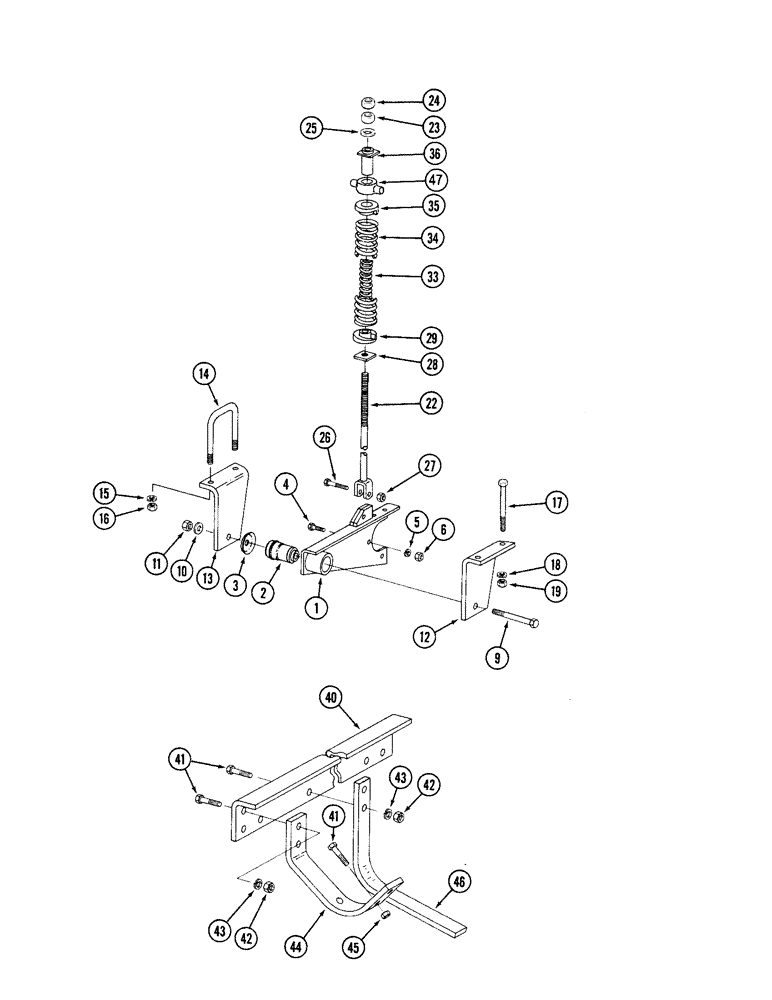

Запчасти Case IH 6500 (9-16) - DISK GANG SUPPORT (09) - CHASSIS/ATTACHMENTS

1

812402C91

ARM

ASSEMBLY - disk gang support, left Inlc 2

2шт.

1

812403C91

ARM

ASSEMBLY - disk gang support, right Incl 2

2шт.

2

596781R1

BUSHING,15.95mm ID x 52.32mm OD x 65.02mm L

- pivot gang

1шт.

3

596784R1

WASHER

- pivot, bushing

4шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

12шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

9

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

10

464623R1

WASHER

- flat, 0.656 x 1.500 x 0.105 inch

4шт.

11

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

12

812396C2

SUPPORT

- pivot, gang left

4шт.

13

812397C2

SUPPORT

- pivot, gang right

4шт.

14

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC

6шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

16

425-1010

NUT,5/8"-11, G5

6шт.

17

25680R1

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch (Outer Supports)

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, Grade 8

4шт.

22

812409C1

ROD

ASSEMBLY - lift, spring

4шт.

23

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

24

426897

JAM NUT,Jam, 3/4"-10, G5

- hex, jam 3/4 inch NC

4шт.

25

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

26

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

Ref 26 and 27---in new machines replaced by pin 439-51248 (.750 X 1.125 X 3.000)and cotter pin 432-1624---see Tech staff copy of ecn in 6500 catalog. jjs 10-16-97

1шт.

27

9413967

LOCK NUT,1/2"-13, GB

NUT - hex, lock 1/2 inch NC

4шт.

28

812443C2

WASHER

- rod, spring

4шт.

29

608348R1

RETAINER

SEAT - lower, spring

4шт.

33

1256955C1

SPRING

- inner, rod

4шт.

34

609133R1

VALVE SPRING

SPRING - outer, rod

4шт.

35

1256981C1

PLUG

SEAT - upper, spring

4шт.

REF#34 ANOTHER SPRING USED(NOT A SUB) PART

1шт.

110517A1 9/30/96

1шт.

REF#35 ANOTHER SEAT USED (NOT A SUB) PART 110518A1

1шт.

36

1256979C1

TUBE,58 mm Length

ASSEMBLY - guide, rod

4шт.

40

1256961C1

BAR

- trash (11 Foot frame)

2шт.

40

1256975C1

BAR

- trash (14 Foot frame)

2шт.

41

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Trash bar Hex, 1/2"-13 x 1 1/2", G5, Full Thd

36шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Trash bar 1/2"-13, G5

1шт.

43

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Trash bar 1/2"

1шт.

44

1256954C2

BAR

- support, trash bar

4шт.

45

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC, trash bar

8шт.

46

1256963C2

BAR

- trash (See Note)

1шт.

NO REF# TRUNNION THAT IS BETWEEN REFERENCE NUMBERS 35 AND 36 IS PART NUMBER 468532R2. H.W. 9/5/96.

1шт.

47

468532R2

PIVOT

4шт.
