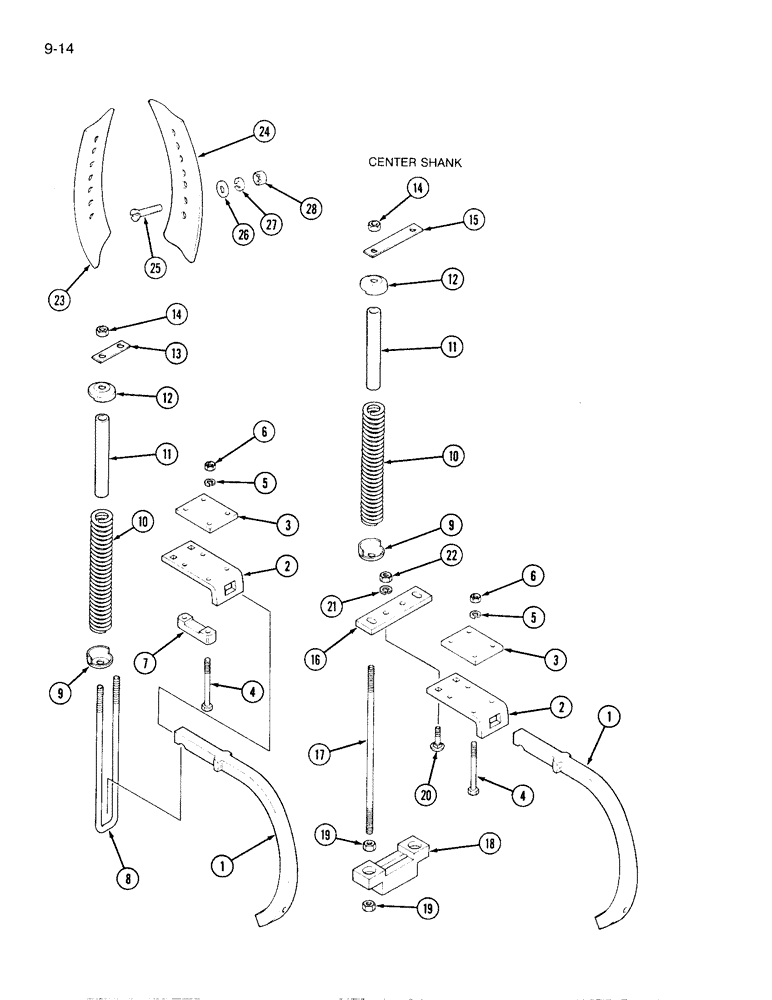

Запчасти Case IH 6500 (9-14) - SHOVEL, CUSHION CLAMP AND SHANK (09) - CHASSIS/ATTACHMENTS

1

1284066C1

SHANK

- shovel, (9 used on 11 foot)

11шт.

2

1284067C1

SUPPORT

BRACKET - clamping, (9 used on 11 foot)

11шт.

3

1284069C1

PLATE

- shank clamping, (9 used on 11 foot)

11шт.

4

426-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 8

- hex, 5/8 NC x 7-1/2 inch, (36 used on 11 foot)

44шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (36 used on 11 foot) 5/8"

44шт.

6

429-1010

NUT,5/8"-11, G8

(36 used on 11 foot) 5/8"-11, G8

44шт.

7

1995500C1

BLOCK

- movement, (16 used on 11 foot frame)

20шт.

8

91150C2

U-BOLT

- spring, (8 used on 11 foot)

10шт.

New "U" bolt replaced by 1980700c1, bar and (2)

1шт.

1980703c1 studs.

1шт.

91154c1 "U" bolt, spring ( 25-1/2" )

1шт.

1284009c1 " " ( 16 " ) see TM 208.

1шт.

9

91149C1

SPRING SEAT

SEAT - spring, lower, (18 used on 11 foot)

22шт.

10

91155C1

SPRING

- trip, (18 used on 11 foot)

22шт.

609133r1 spring for older machines, (2-1/2 dia.x 11-1/2 long, 14 coils).

1шт.

REF# 10 - THE OLD 6500 CONSER TILL TAKES A SPRING 609133R1, WHICH IS 2.5 X 11.5, 14-1/2 COILS. THE BRACKET FOR IT IS 810873C1.ANOTHER ONE IS 608347R1 2.45" DIA. 10.79" LONG 13 COILS. 11/1/98 DMB.

1шт.

11

91151C1

SPACER

- cushion spring, (18 used on 11 foot)

22шт.

12

91148C1

RETAINER

SEAT - spring, upper, (18 used on 11 foot)

22шт.

13

591755R2

STRIP

BAR - spring tie, (8 used on 11 foot)

10шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, (18 used on 11 foot)

22шт.

15

91156C2

STRIP

BAR - spring tie

1шт.

16

1256969C1

BAR

- center cross, upper

1шт.

17

1980703C1

STUD

- center shank

2шт.

18

1980700C1

BAR

- center cross, lower

1шт.

19

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

20

433-1236

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2 1/4", Gr 5

BOLT - round head square neck, 3/4 NC x 2-1/4 inch

2шт.

21

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

22

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

23

812384C3

SHOVEL

- twisted, left throw, (5 used on 11 foot)

6шт.

24

812385C3

SHOVEL

- twisted, right throw, (4 used on 11 foot)

5шт.

25

419-2840

PLOW BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - plow, 1/2 NC x 2-1/2 inch, (18 used on 11 foot)

22шт.

26

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 0.531 x 1.250 x 0.105 inch, (on lower bolts) (9 used on 11 foot)

11шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (18 used on 11 foot) 1/2"

22шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, (18 used on 11 foot) NOTE: Quantities are listed for 14 foot frame. Quantites for 11 foot frame are listed in Description if different from 14 foot. 1/2"-13, G5

22шт.
