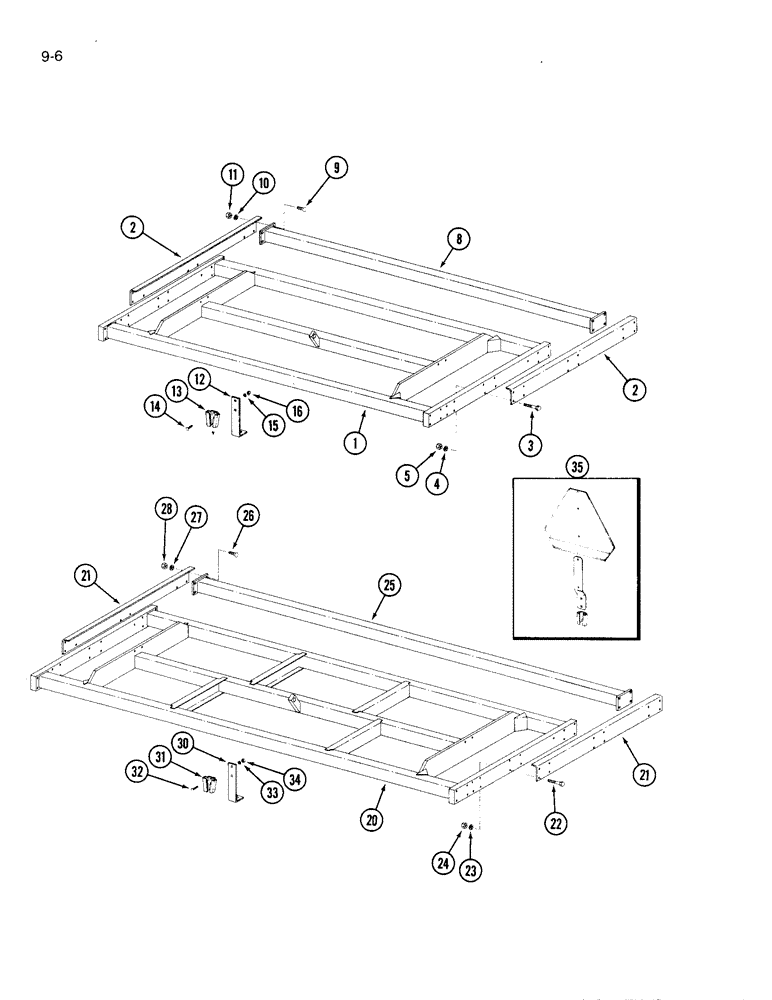

Запчасти Case IH 6500 (9-06) - FRAME (09) - CHASSIS/ATTACHMENTS

1

97472C91

FRAME

ASSEMBLY - main (With decal and reflector), 11 foot

1шт.

2

812387C1

ANGLE

- outer frame, 11 foot

2шт.

3

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch, 11 foot

16шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 11 foot 5/8"

16шт.

5

425-1010

NUT,5/8"-11, G5

11 foot 5/8"-11, G5

16шт.

8

97474C91

BAR

ASSEMBLY - front support (With refelector), 11 foot

1шт.

9

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch, 11 foot

8шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 11 foot 5/8"

8шт.

11

425-1010

NUT,5/8"-11, G5

11 foot 5/8"-11, G5

8шт.

12

811324C1

SUPPORT

- SMV, 11 foot

1шт.

13

398976R1

BRACKET

- SMV mounting, 11 foot

1шт.

14

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 3/4 inch, 11 foot

2шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 11 foot 5/8"

2шт.

16

425-1010

NUT,5/8"-11, G5

11 foot 5/8"-11, G5

2шт.

20

97473C91

FRAME

ASSEMBLY - main (With decal and reflector), 14 foot

1шт.

21

812387C1

ANGLE

- outer frame, 14 foot

2шт.

22

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch, 14 foot

16шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 14 foot 5/8"

16шт.

24

425-1010

NUT,5/8"-11, G5

14 foot 5/8"-11, G5

16шт.

25

97475C91

BAR

ASSEMBLY - front support (With reflector), 14 foot

1шт.

26

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch, 14 foot

8шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 14 foot 5/8"

8шт.

28

425-1010

NUT,5/8"-11, G5

14 foot 5/8"-11, G5

8шт.

30

811324C1

SUPPORT

- SMV, 14 foot

1шт.

31

398976R1

BRACKET

- SMV mounting, 14 foot

1шт.

32

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/8 NC x 3/4 inch, 14 foot

2шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 14 foot 5/8"

2шт.

34

425-1010

NUT,5/8"-11, G5

14 foot 5/8"-11, G5

2шт.

35

407220R1

PRODUCT GRAPHIC

EMBLEM KIT - slow moving vehicle, 14 foot

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 x 1/2 inch, 14 foot

2шт.

607893R1

WASHER

- flat, 13/64 x 1/2 x 3/64 inch, 14 foot

2шт.

225-14110

NUT,#10-24

14 foot #10-24

2шт.
