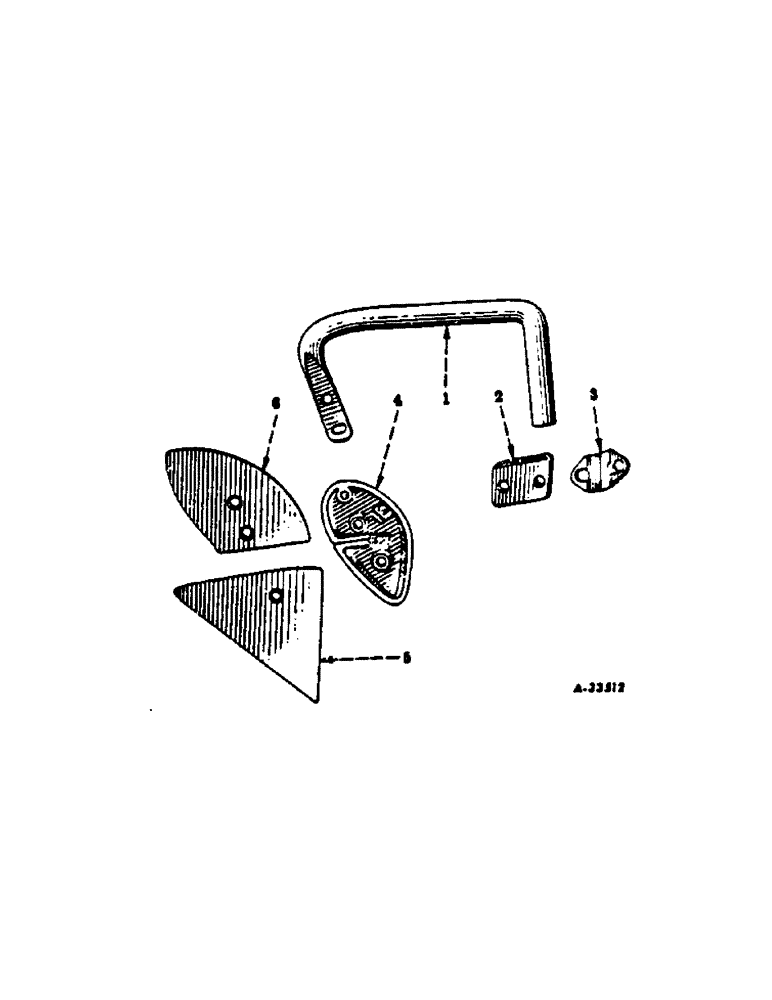

Запчасти Case IH 642 (AE-04[A]) - JOINTER, TWO PIECE BLADE, ONE PER FURROW

1

519344R1

SHANK

1шт.

18465R1

BOLT,Sq Hd, 3/8"-16 x 1 1/4", G2

3/8 x 1-1/4 C-Z sq-hd mach

1шт.

18908R1

BOLT, 3/8 x 1-1/2 C-Z sq-hd mach

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

519343R1

BLOCK, jointer

1шт.

3

519342R1

CAP, jointer adjsting

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z sq-hd crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

PO2426

FROG

1шт.

5

PO2226

SHARE, chilled

1шт.

5

PO20092X

BLADE

SHARE W/BOLTS, steel

1шт.

21618R1

BOLT, 3/8 x 1-3/8 C-Z no. 7 plow

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

PO1186

MOLDBOARD, chilled

1шт.

6

S7408X

MOLDBOARD W/BOLTS, steel

1шт.

21616R1

BOLT, 3/8 x 1-1/8 C-Z no. 7 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
