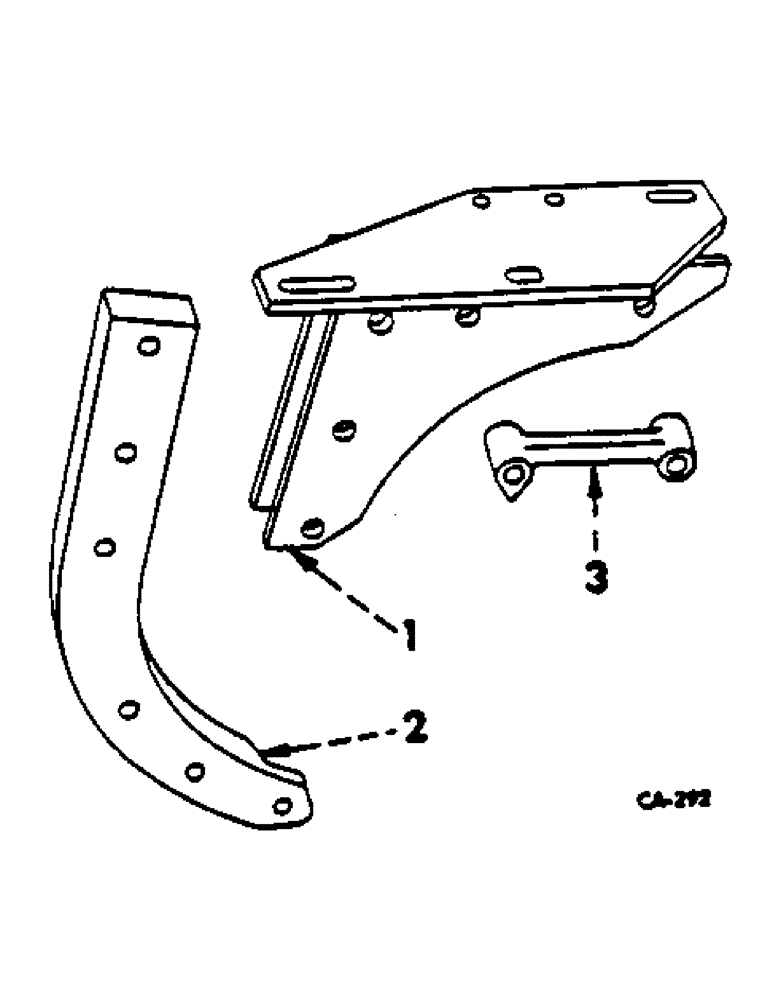

Запчасти Case IH 642 (AE-03) - RIGID BEAM, ONE PER FURROW

1

524371R91

PLATE ASSY, LH side

1шт.

1

524372R91

PLATE ASSY, RH side

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8 x 3-1/4 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

2

524369R1

BEAM

LH rigid

1шт.

2

524370R2

BEAM

RH rigid

1шт.

3

479493R1

ARM

spacer

1шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8-11 x 3-1/4 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
