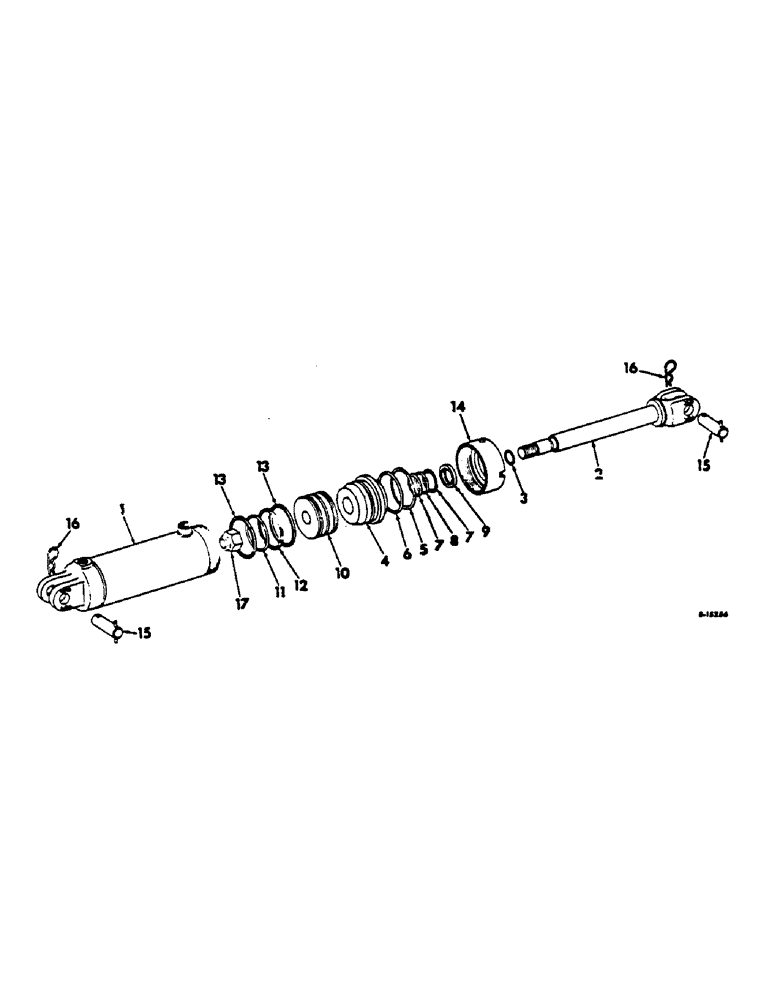

Запчасти Case IH 642 (AE-13) - HYDRAULIC CYLINDER, PRODUCT GRAPHICS

388688R91

CYLINDER ASSY, hydraulic, 4 x 8, double acting

1шт.

1

388689R11

BODY ASSY, cylinder

1шт.

2

388691R11

ROD

ASSY, piston

1шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8, piston rod static

1шт.

4

388693R1

END

HEAD, cylinder front

1шт.

5

381107R1

BACK-UP RING

WASHER, front head backup

1шт.

6

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

3-5/8 x 4 x 3/16, front head

1шт.

7

387362R1

BACK-UP RING

WASHER, piston rod backup

2шт.

8

387363R1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1-3/4 x 2-1/8 x 3/16, piston rod

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

388694R1

PISTON ASSY.

PISTON

1шт.

11

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

3-1/2 x 3-11/16 x 3/32, piston seal

1шт.

12

381110R1

RING

piston seal

1шт.

13

383006R1

RING

piston bearing

2шт.

14

381111R1

RING

retaining

1шт.

15

388695R31

PIN

ASSY, cylinder pivot

2шт.

16

520175R1

CLIP

PIN, quick-attachable cot

2шт.

17

20251R1

NUT

piston rod

1шт.

388983R91

KIT

PACKAGE, o-ring service, consists of, (1) ring 350818R1, (1) ring 347801R1, (2) ring 383006R1, (1) washer 381007R1, (1) ring 381009R1, (1) seal 381110R1, (2) washer 387362R1, (1) ring 387363R1, (1) wiper 403845R1

1шт.

3751852R1

PRODUCT GRAPHIC, International

1шт.

2752588R1

PRODUCT GRAPHIC, hyd cyl

1шт.

474639R91

KIT, product graphics

1шт.
