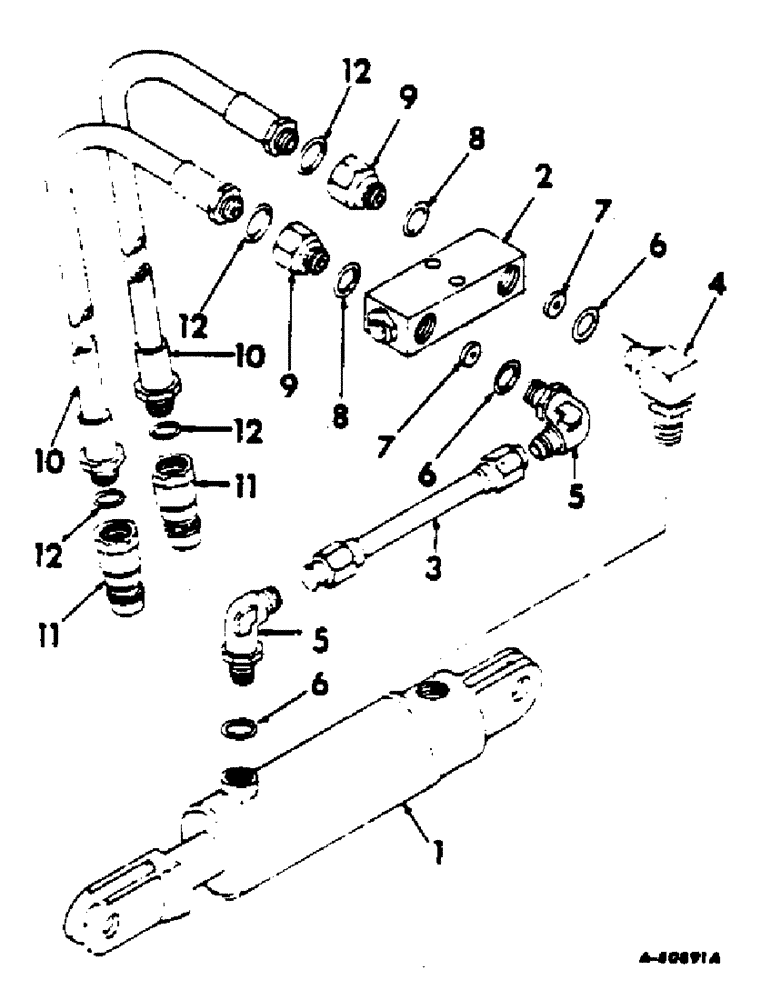

Запчасти Case IH 642 (AE-11) - HYDRAULIC UNIT

1

388688R91

CYLINDER ASSY, hyd, for components see list of parts under details of hydraulic cylinder

1шт.

2

385558R94

VALVE

ASSY, double action check, for components see list of parts under details of double acting check valve

1шт.

3

479502R11

TUBE

PIPE ASSY, check valve

1шт.

4

196973C1

ELBOW

7/8-14 90 deg w/locking nuts & o-rings, replaces 476940R1

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube, adj str thrd 90 deg valve

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

7

542890R1

PORT

WASHER, restrictor (replaces 474138R1)

2шт.

9

462869R1

UNION

ADAPTER, valve

2шт.

10

653411R91

HOSE ASSY, hydraulic, 36 in. long, Farmall 706, 756, 806, 856 tractors

2шт.

10

653323R91

HOSE ASSY, hydraulic, 45 in. long, Farmall 1206D, 1256D tractors

2шт.

11

395149R1

QUICK MALE COUPLING

COUPLER, self sealing male, will work for 388990R91

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 16/16 x 3/32

4шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.
