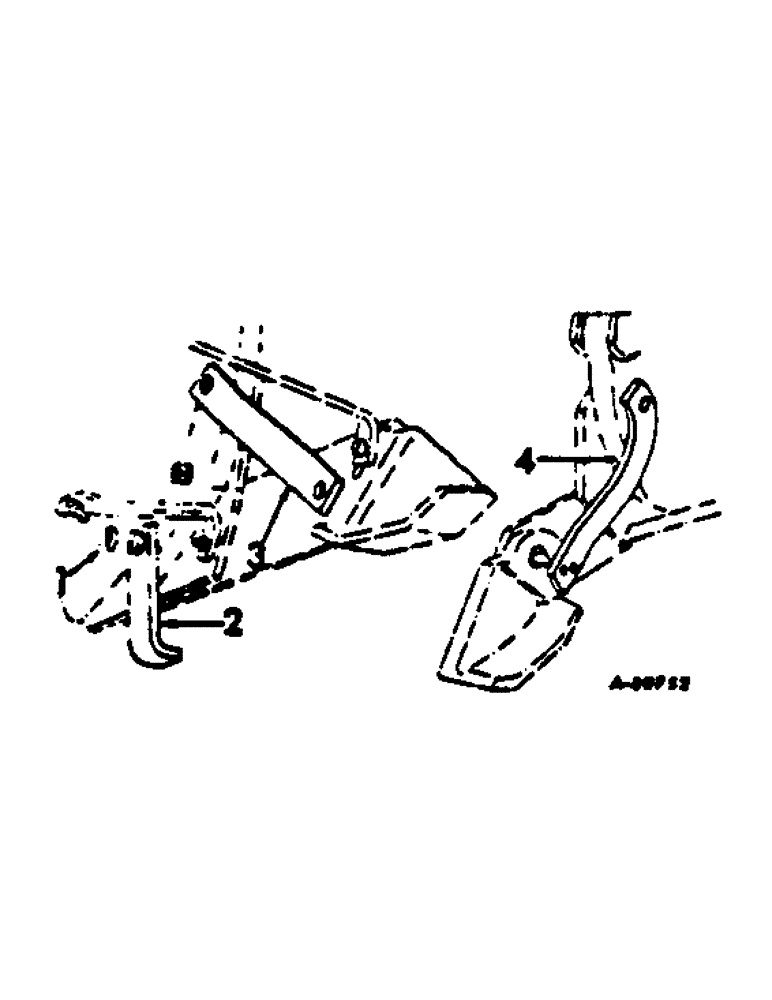

Запчасти Case IH 642 (AE-10) - CUSHIONER AND BRACE ATTACHMENT

1

473934R1

SPACER, cushioner bar

2шт.

1

540846R1

SPACER, cushioner bar, for rigid beam plows only

2шт.

For super chief bottom with adjustable heel on landside rear bottom only

1шт.

2

473934R1

BAR, cushioner

2шт.

For gau, hska and sl bottom with adjustable heel on landside rear bottom only

1шт.

130054H

WASHER, 21/32 x 2 x 7 ga

4шт.

2

540846R1

BAR, cushioner

2шт.

For super chief bottom with adjustable heel on landside rear bottom only

1шт.

22297R1

BOLT

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap type 4

2шт.

130354H

EXCITER

WASHER, 21/32 x 2 x 7 ga

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

2шт.

3

474140R1

BRACE, Serial Range: beam-landslide

2шт.

For gau, hska and sl bottom with adjustable heel on landside rear bottom only

1шт.

19046R1

BOLT

7/16 x 2-1/2 C-Z no. 3 plow

2шт.

475394R1

BOLT,5/8"-11 x 3 1/2", G5

5/8-11 x 3-1/2 no. 3 plow

2шт.

4

474141R1

BRACE, beam to landside LH

1шт.

For super chief bottom with adjustable heel on landside rear bottom only

1шт.

4

474142R1

BRACE, beam to landside RH

1шт.

For super chief bottom with adjustable heel on landside rear bottom only

1шт.

19046R1

BOLT

7/16 x 2-1/2 C-Z no. 3 plow

2шт.
