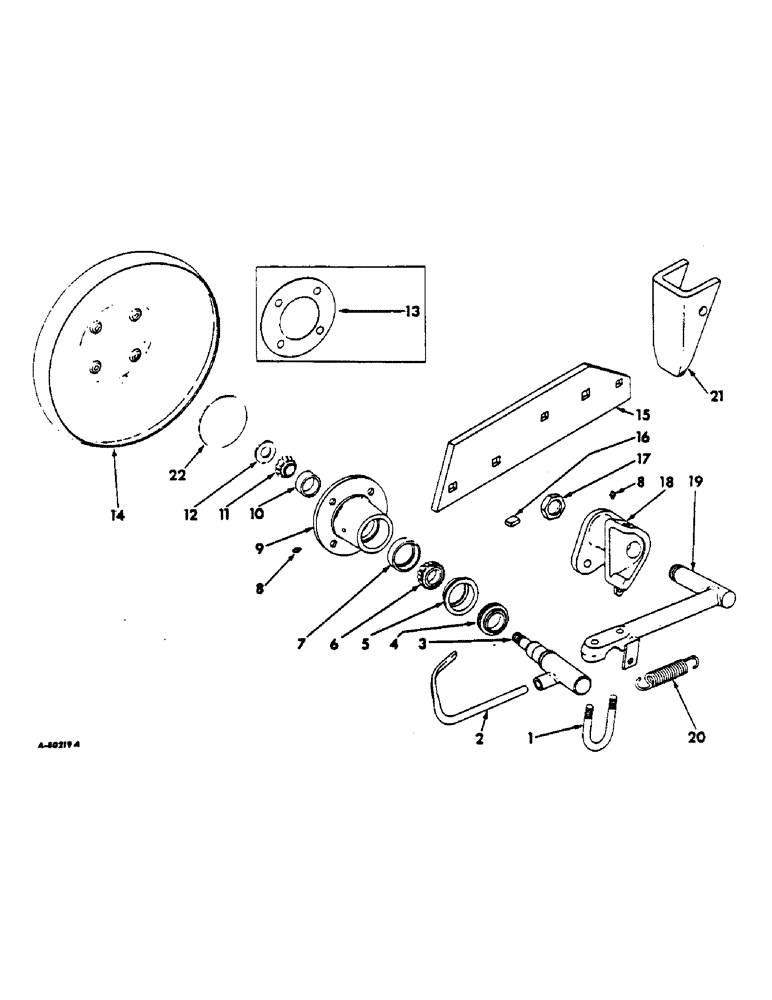

Запчасти Case IH 642 (AE-09) - REAR FURROW WHEEL, SPRING LOADED

1

478221R1

BOLT,Plow, 1/2" - 13 x 3.0"

U-BOLT, axle support

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

2

478222R1

KNIFE

BLADE, LH scraper

1шт.

2

478223R1

KNIFE

BLADE, RH scraper

1шт.

3

478216R91

SPINDLE

ASSY

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.

69442D

NUT

3/4-16 slt hex, jam

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

5

472222R1

SLEEVE

oil seal

2шт.

6

651818R1

BEARING, inner cone

2шт.

7

651817R1

BEARING CUP

BEARING, inner cup

2шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub, in wheel hub and pivot bracket

4шт.

9

478218R2

HUB

furrow wheel

2шт.

15564R1

BOLT

7/16-14 x 1-1/4 no. 3 plow

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

NLS

NO LONGER SERVICED

7/16-14 hex

8шт.

10

651814R1

BEARING CUP

BEARING, outer cup

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

13

(Not used in this application)

1шт.

14

478725R1

WHEEL

rear furrow

2шт.

15

478227R1

LANDSIDE

ASSY, super chief RH bottom

1шт.

478232R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8

BOLT, 7/16-14 x 2 no. 3 plow

1шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT, 5/8-11 x 3 no. 3 plow

1шт.

15631R1

BOLT,5/8"-11 x 2 1/4", G2

5/8-11 x 2-1/4 no. 3 plow

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 ESNA stop

2шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

478226R11

LANDSIDE

ASSY, super chief LH bottom special

1шт.

478232R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8

BOLT, 7/16-14 x 2 no. 3 plow

2шт.

CP152256

BOLT, 5/8-11 x 3 no. 3 plow

1шт.

15631R1

BOLT,5/8"-11 x 2 1/4", G2

5/8-11 x 2-1/4 no. 3 plow

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 ESNA stop

2шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

478230R11

LANDSIDE ASSY, gau, RH bottom special

1шт.

478233R1

BOLT, 3/8-16 x 1-3/4 no. 3 plow

1шт.

478234R2

BOLT, 3/8-16 x 2 no. 3 plow

1шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT, 5/8-11 x 3 no. 3 plow

1шт.

15631R1

BOLT,5/8"-11 x 2 1/4", G2

5/8-11 x 2-1/4 no. 3 plow

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, , Esna 3/8"-16, GB

2шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

478229R11

LANDSIDE ASSY, gau-LH bottom special

1шт.

478233R2

BOLT, 3/8-16 x 1-3/4 no. 3 plow

1шт.

478234R2

BOLT, 3/8-16 x 2 no. 3 plow

1шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT, 5/8-11 x 3 no. 3 plow

1шт.

15631R1

BOLT,5/8"-11 x 2 1/4", G2

5/8-11 x 2-1/4 no. 3 plow

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, , Esna 3/8"-16, GB

2шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

478220R1

BLOCK, rear axle pivot

2шт.

17

358876R1

LOCK NUT

drive shaft lock

1шт.

18

478214R2

PIVOT

rear axle RH

1шт.

18

478213R2

PIVOT

rear axle LH

1шт.

478215R1

SCREW, 5/8-11 x 2-1/4 hex-hd cap

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

19

478209R91

AXLE

ASSY, spring loaded furrow wheel RH

1шт.

19

478208R91

AXLE

ASSY, spring loaded furrow wheel LH

1шт.

20

478219R1

SPRING

rear furrow wheel

2шт.

21

478207R2

STOP

beam

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

1шт.

20511R1

WASHER, 5/8 zn-pltd med lock

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

22

41-3044

PLUG,Exp, 2 3/4"

wheel hub expansion, 1964 & up

2шт.
