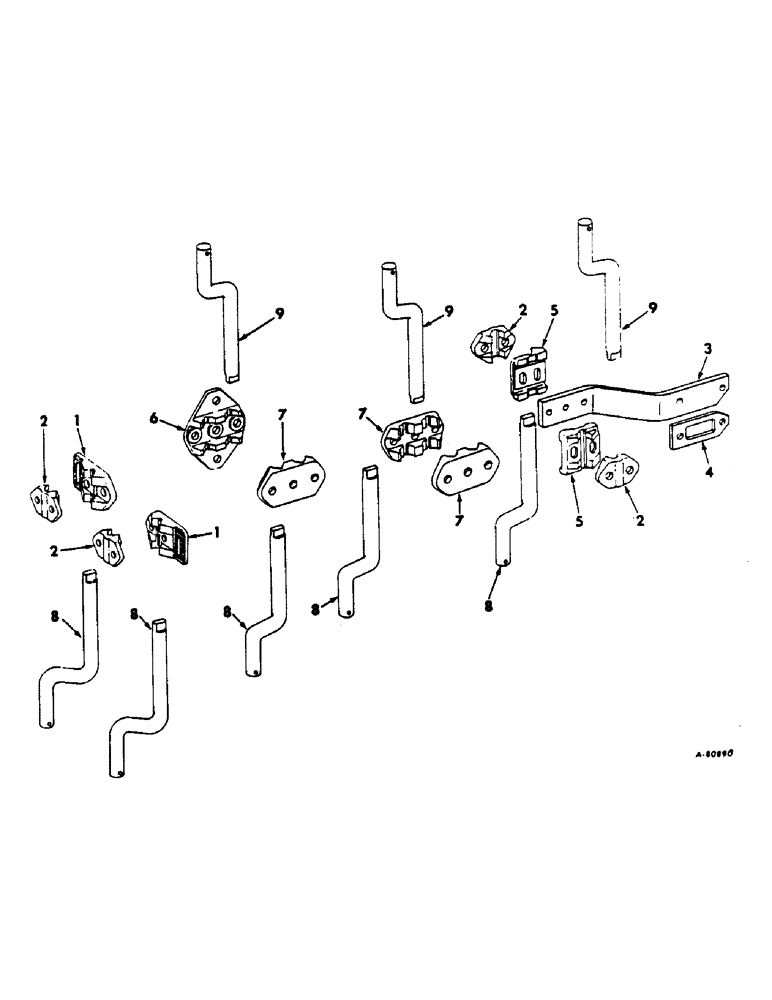

Запчасти Case IH 642 (AE-08) - COLTER SHANKS AND CLAMPS

1

462684R1

CLAMP

1st colter

2шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

2шт.

523011R1

WASHER

front colter clamp

2шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

524492R1

CLAMP

CAP, colter clamp, used on four furrow plows

4шт.

2

524492R1

CLAMP

CAP, clamp, used on three furrow plows

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap, 1st colter

2шт.

102639

NUT,5/8"-11, G5

2шт.

273089

COIL

SCREW, 5/8-18 x 6-1/2 hex-hd cap, 4th colter

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

3

479510R1

RAIL

BAR, 4th rail

1шт.

4

524465R1

SUPPORT

SPACER, beam

1шт.

5

524456R3

CLAMP

colter 4th rail

2шт.

6

473646R1

CLAMP, 2nd colter

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-18 x 3-1/4 hex-hd cap

3шт.

425-1110

NUT,5/8"-18, G5

3шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

102639

NUT,5/8"-11, G5

2шт.

1033255

WASHER, 5/8 med lock

2шт.

7

462687R1

STAPLE

CAP, colter

3шт.

IH271597

BOLT

SCREW, 5/8-18 x 4-1/2 hex-hd cap

3шт.

425-1110

NUT,5/8"-18, G5

3шт.

8

466944R1

ROD

SHANK, colter, 5 used on four furrow plows

1шт.

8

466944R1

ROD

SHANK, colter, 4 used on three furrow plows

1шт.

9

522434R1

STEM

SHANK, colter, 3 used on four furrow plows

1шт.

9

522434R1

STEM

SHANK, colter, 2 used on three furrow plows

1шт.
