Запчасти Case IH 642 (AE-07) - ROLLING COLTER, SHEAR BOLT, PRECISION BEARING SINGLE ARM

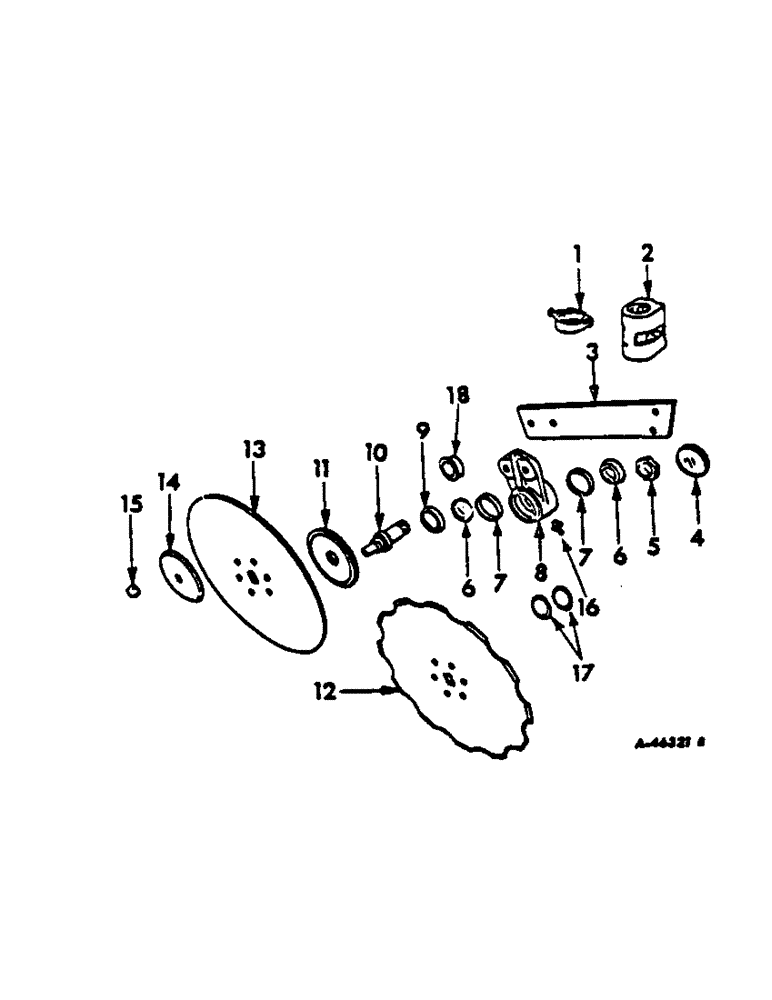

Схема запчастей Case IH 642 - (AE-07) - ROLLING COLTER, SHEAR BOLT, PRECISION BEARING SINGLE ARM

Артикул

Название

Примечание

Количество

1

523345R21

COLLAR CLAMP

COLLAR ASSY, stop

1шт.

20080R1

SET SCREW

1/2-13 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

2

462272R2

BEARING

colter arm LH

1шт.

2

462273R2

SUPPORT ASSY.

BEARING, colter arm RH

1шт.

181672

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

SCREW, 7/16-20 x 1-3/4 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-20 C-Z hex

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cop hex, lock

1шт.

3

462271R1

ARM, colter

1шт.

4

518842R1

CAP

hub, Serial Range: up-1969

1шт.

4

663906R1

CAP

hub, 1969 and since

1шт.

5

519250R1

SLOTTED NUT

1-1/4 NF hex, slotted

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, housing cone

2шт.

7

651817R1

BEARING CUP

BEARING, housing cup

2шт.

8

524710R2

HOUSING

LH bearing

1шт.

8

523019R1

HOUSING

bearing RH, Serial Range: up-1969

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING, bearing RH, 1969 and since

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

523027R91

OIL SEAL

housing oil, Serial Range: up-1969

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

housing oil, 1969 and since

1шт.

10

523023R1

SPINDLE

, Serial Range: up-1969

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

10

541480R1

SPINDLE

1969 and since

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

11

523020R2

SUPPORT ASSY.

SUPPORT, inside blade

1шт.

12

523026R2

DISC

BLADE, 17 notched colter

1шт.

13

523025R2

HALF BLADE

BLADE, 17 plain colter

1шт.

13

469191R3

BLADE

17 rippled

1шт.

14

523021R1

WASHER

SUPPORT, outside blade

1шт.

15

21626R1

LOCK NUT,3/4"-16

NUT, 3/4-16 zn-pltd nylon insert, up to 1969

1шт.

15

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8, 1969 and since

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, 1969 and since

1шт.

17

216389R1

SNAP RING,2.312", Int, #231

Ring, Snap, , brg, 1969 and since 2.312", Int, #231

2шт.

18

472224R1

SLEEVE

oil seal, 1969 and since

1шт.

Выбрано товаров: 38
