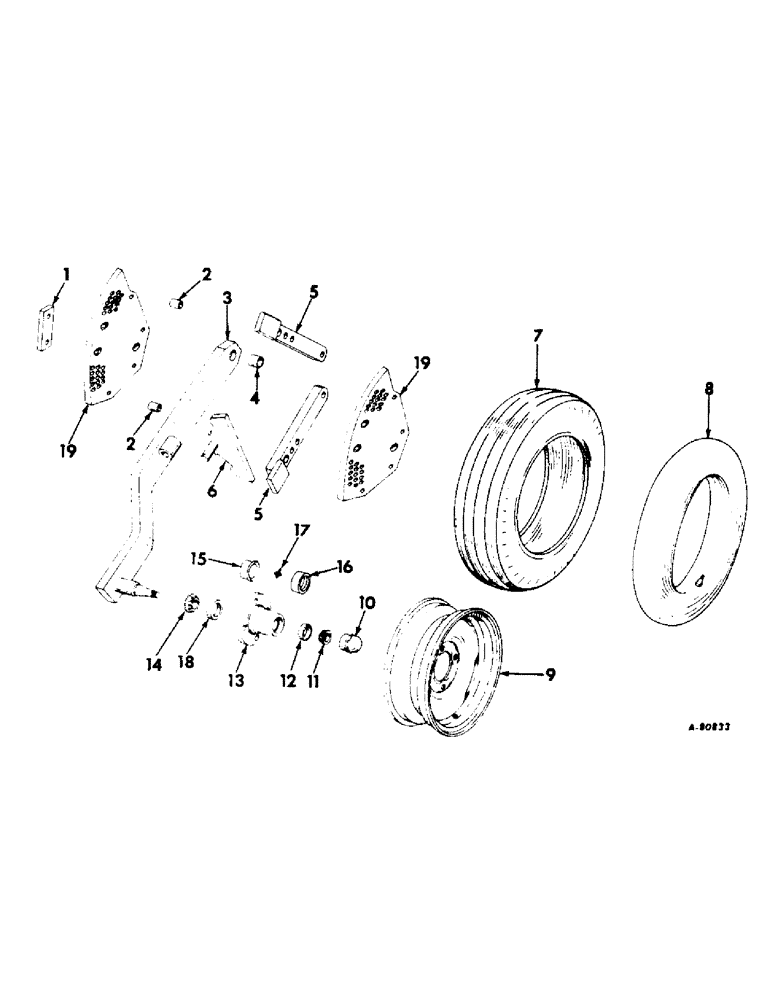

Запчасти Case IH 642 (AE-05) - GAUGE WHEEL

1

463070R1

LARGE PLATE

CLIP, attaching plate

1шт.

2

463069R1

SPACER

attaching plate

2шт.

3

467497R93

STEERING KNUCKLE

STANDARD ASSY, wheel

1шт.

49442D

NUT, 3/4-16 slt hex

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

472634R1

WASHER

25/32 x 1-3/4 x 11 ga

1шт.

4

463063R1

BUSHING

standard

1шт.

5

477908R92

BAR

ASSY, latch

2шт.

6

463072R12

LATCH ASSY.

LATCH ASSY

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

1шт.

7

TIRE, 7.00 x 14, 7.50 x 14, 8.00 x 14, 5.00 x 15 pr 6.70 x 15

1шт.

8

TUBE, pneumatic

1шт.

9

455169R92

WHEEL

ASSY, disk, 15 x 4-1/2 KB rim, for 5.00 x 15 or 6.70 x 15 tire

1шт.

9

463036R1

WHEEL (STEERING)

WHEEL ASSY, disk, 14 x 5 KB rim, for 7.00 x 14, 7.50 x 14 or 8.00 x 14 tire

1шт.

10

651194R1

CAP

wheel

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

12

651814R1

BEARING CUP

BEARING, outer cup

1шт.

13

472220R11

HUB

ASSY, wheel

1шт.

443804

SCREW, 1/4-28 x 1/4 C-Z slt ov-pt hdls set

1шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, inner cone

1шт.

15

472222R1

SLEEVE

oil seal wear

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, for wheel hub

1шт.

18

651817R1

BEARING CUP

BEARING, inner cup

1шт.

19

477910R1

LARGE PLATE

PLATE, wheel attaching

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex-hd mach

2шт.

15672R1

PLOW BOLT,#3, 5/8" - 11 x 3", Gr 2

BOLT, 5/8 x 3 no. 3 plow hd, plow 2

2шт.

463154R1

BOLT

1 unf 14 x 4-1/4 dld hex-hd

1шт.

102637

NUT,1/2"-13, G5

2шт.

458188R1

NUT

5/8-11 unc McLean-fogg lock

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex

1шт.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

468317R1

HEADED PIN,1/2" x 2 7/16"

PIN, 1/2 x 2-7/16 std-hd

2шт.

520175R1

CLIP

PIN, quick-attachable cot

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.
