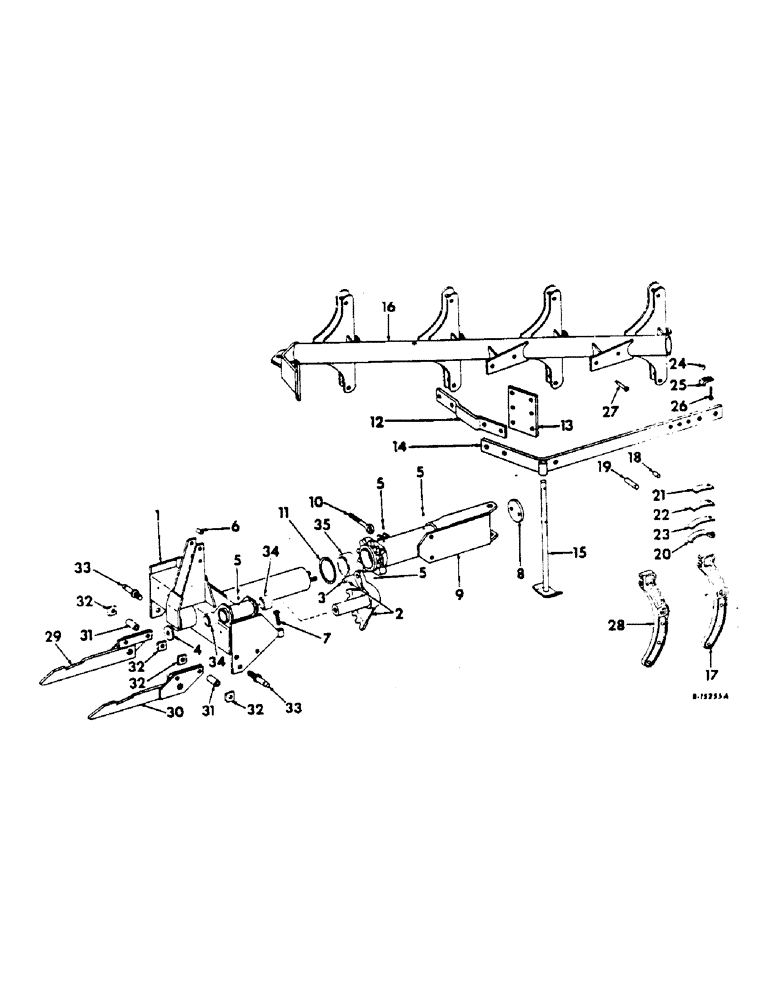

Запчасти Case IH 641 (AD-02) - CARRIER, DRIVE, FRAME AND BEAMS

1

473591R91

CARRIER

main

1шт.

19749R1

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 ESNA

2шт.

2

473606R21

GEAR

SECTOR ASSY, gear

1шт.

3

473608R1

BUSHING

cylinder

1шт.

4

473609R1

WASHER, sector shaft

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF 2 str lub

4шт.

6

462425R1

SPACER

mast

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

1шт.

271619

CIRCLIP

3/4-10 x 4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

7

4736142R1

BOLT, leveling

2шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

4шт.

8

473613R1

WASHER, carrier

1шт.

9

473614R12

DRIVE ASSY

1шт.

473823R1

BOLT, 1-8 x 9 hex-hd

1шт.

19515R1

LOCK NUT,1"-8, GB

NUT, 1-8 ESNA STOP

1шт.

10

473621R1

BOLT, drive eye

1шт.

217443

NUT, 3/4-10 hex, jam

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Q1176

HEADED PIN,5/8" x 2 3/16"

PIN, 5/8 x 2-1/16 std-hd

1шт.

11

473622R1

THRUST WASHER

drive gear thrust

1шт.

12

473634R1

BAR, frame cross

2шт.

13

473635R1

PLATE, frame

1шт.

220081

NUT

3/4-10 hex

6шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

14

473636R11

RAIL ASSY, main 16 in.

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

2шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

468841R21

STAND ASSY, support

1шт.

Q3548

PIN,1/2" x 2 1/16"

1/2 x 2-1/16 std-hd

1шт.

520175R1

CLIP

PIN, quick-attachable cot

1шт.

16

473648R92

FRAME ASSY, trip

1шт.

17

524368R1

BEAM

RH trip, note B

4шт.

17

524367R1

BEAM

LH trip, note B

4шт.

522680R2

BOLT

1-14 x 3-3/8 hex-hd dld mach

4шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex

4шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, 3/16 x 1-3/4 cot

4шт.

18

522432R2

SPACER

STOP, beam, also spacer

8шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8-11 x 3-1/4 hex-hd mach

8шт.

102639

NUT,5/8"-11, G5

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

522967R1

ROLLER

trip spring, note B

8шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, , ESNA 1/4" x 1 1/2", Slotted

16шт.

522473R1

WASHER

49/64 x 1-3/4 x 11 ga

16шт.

20

524356R1

SPRING

trip note B

8шт.

11133R1

PIN, 3/4 x 2-13/16 std-hd

8шт.

136121R1

PIN, 1/4 x 1-1/2 cot

8шт.

21

524452R1

VALVE SPRING

SPRING, upper helper, note B

8шт.

22

524453R1

VALVE SPRING

SPRING, middle helper, note B

8шт.

23

524454R1

VALVE SPRING

SPRING, lower helper, note B

8шт.

24

18590R1

AXLE PIN,1/2" x 2", Slotted

Pin, , helper spring locator, note B 1/2" x 2", Slotted

4шт.

25

468847R1

CLIP,ELECTRICAL

CLIP, helper spring adjusting, note B

8шт.

26

468848R1

BOLT, trip adjusting, note B

4шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4шт.

27

468868R2

PIN,14.28mm OD x 83.31mm L

trip beam shear, note A

16шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

16шт.

28

468843R1

BEAM, RH shear, note A

4шт.

28

468842R1

BEAM, LH shear, note A

4шт.

522680R2

BOLT

1-14 x 3-3/8 hex-hd dld mach

4шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex

4шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

4шт.

29

473640R91

BEAM ASSY, RH coupling, tractors w/2 piint hitch

1шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

3шт.

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

SCREW, 3/4-16 x 4 hex-hd cap

1шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

30

473639R91

BEAM ASSY, LH coupling, tractors w/2 point hitch

1шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

3шт.

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

SCREW, 3/4-16 x 4 hex-hd cap

1шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

31

473643R1

SPACER, coupling beam, tractors w/2 point hitch

2шт.

32

950354R1

WASHER, beam spacer, tractors w/2 point hitch

4шт.

33

472790R1

STUD

hitch lower, tractors w/3 point hitch

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 cd or zn-pltd hex

2шт.

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 cd or zn-pltd med

2шт.

34

473604R1

BUSHING

sector shaft

2шт.

35

473620R1

BUSHING

drive

1шт.
