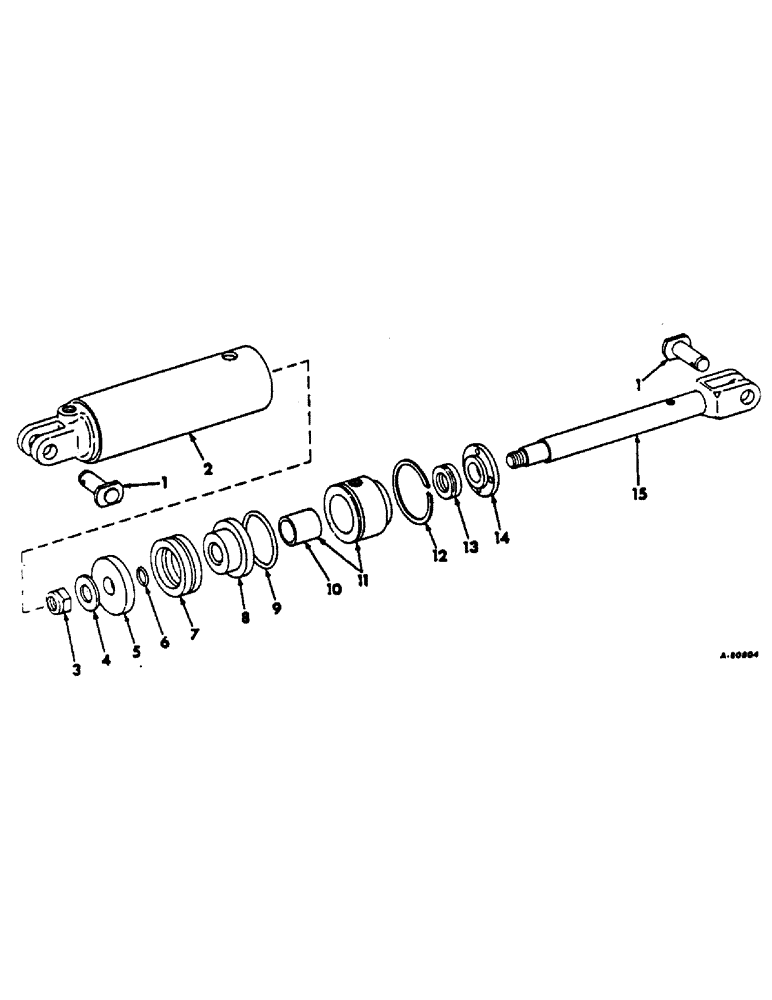

Запчасти Case IH 641 (AD-14) - HYDRAULIC CYLINDER, 1963 TO 1964

473698R91

CYLINDER

ASSY, hydraulic, 4 x 8 in., order 388688R91 cylinder assy, 1 pipe 479501R11 and 1 elbow 476940R1

1шт.

1

475967R91

PIN, clevis

2шт.

2

475958R91

TUBE ASSY

1шт.

3

475968R1

NUT, 1-1/8 NF castellated

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

4

475964R1

WASHER, 1-1/8 x 2-1/2 x 16 ga

1шт.

5

475965R1

WASHER, piston

1шт.

6

O-RING, 1-1/8 x 1-3/8 x 1/8, order package, 475957R91

1шт.

7

PACKAGING, piston, order package, 475957R91

1шт.

8

475966R1

PISTON

1шт.

9

O-RING, 3-5/8 x 4 x 3/16, order package, 475957R91

1шт.

10

475960R1

BUSHING, head

1шт.

11

475961R11

HEAD ASSY

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

1шт.

12

475962R1

RING, head snap

1шт.

13

PACKING, shaft, order package, 475957R91

1шт.

14

475963R1

GLAND, packing

1шт.

113863

SCREW, 5/16-18 x 1 slt-rd-hd mach Slotted Rd Hd, 5/16"-18 x 1"

4шт.

15

475959R91

ROD ASSY

1шт.

475957R91

PACKAGE, cyl overhaul, consists of ref no. 6. 7, 9 & 13

1шт.
