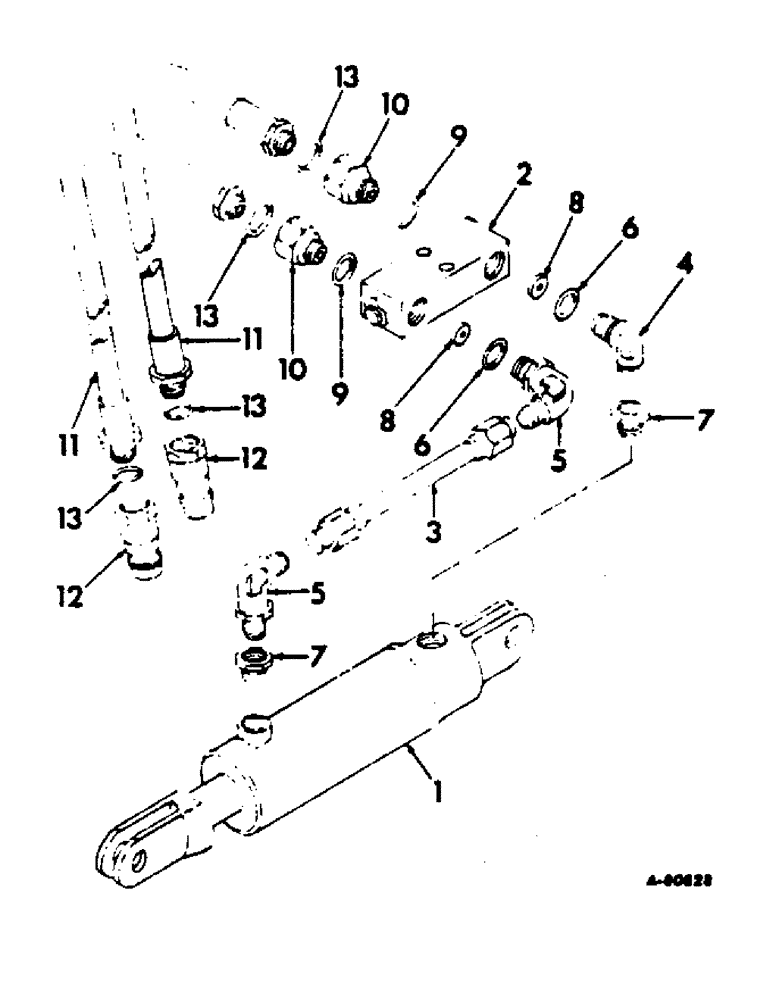

Запчасти Case IH 641 (AD-11) - HYDRAULIC UNIT, 1963 TO 1964

1

473698R91

CYLINDER

ASSY, hyd, note A, for components see list of parts under details of hydraulic cylinder

1шт.

2

38555/8R94

VALVE ASSY, double action check, for components see list of parts under details of double acting check valve

1шт.

3

474137R11

PIPE ASSY, check valve

1шт.

4

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

7/8-14 str thrd x 1/2 nptf hyd flared tube 90 deg

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thrd 90 deg valve

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

7

144219

BUSHING,3/4" NPT Male x 1/2" NPT Fem

3/4 x 1/2 zn-pipe reducer

2шт.

8

474138R1

WASHER, restrictor

2шт.

10

462869R1

UNION

ADAPTER, valve

2шт.

11

653411R91

HOSE ASSY, hyd, 36 in. long

2шт.

12

395149R1

QUICK MALE COUPLING

COUPLER, self-opening male, will work for 388990R91

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

9

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

2шт.
