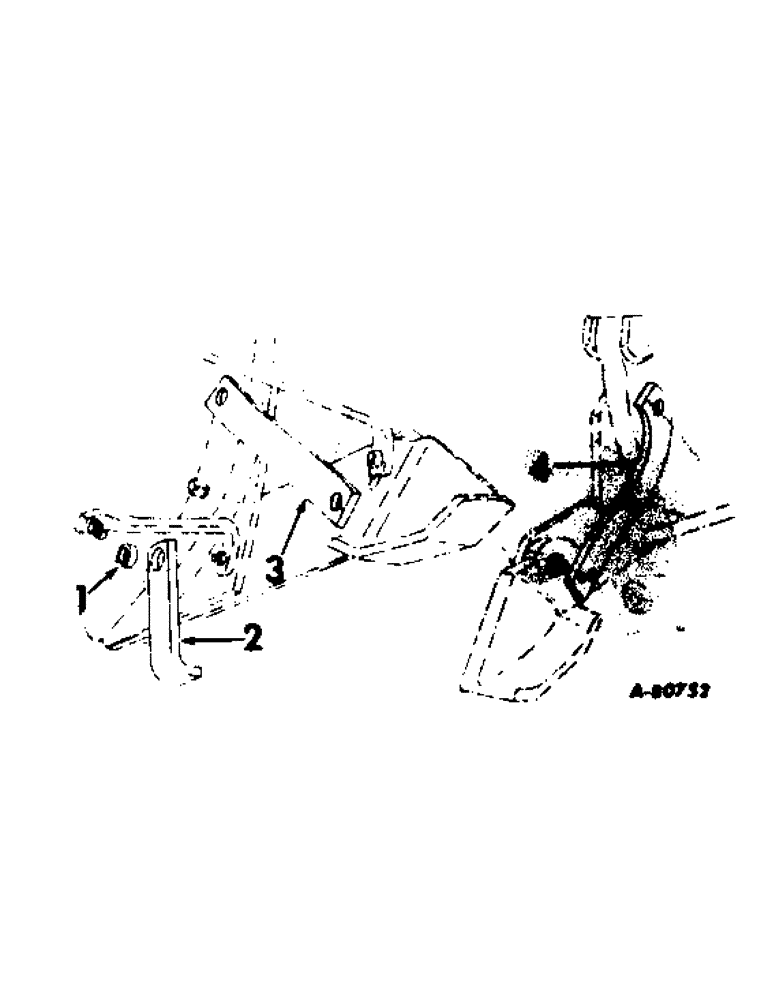

Запчасти Case IH 641 (AD-10) - CUSHIONER AND BRACE ATTACHMENT

1

473935R1

SPACER, cushioner bar

2шт.

For gau-bottom with adjustable heel on landside rear bottom only

1шт.

2

473934R1

BAR, cushioner

2шт.

For gau-bottom with adjustable heel on landside rear bottom only

1шт.

130354H

EXCITER

WASHER, 21/32 x 2 x 7 ga

4шт.

3

474140R1

BRACE, Serial Range: beam-landside

2шт.

For gau-bottom with adjustable heel on landside rear bottom only

1шт.

15643R1

BOLT,#3, 7/16" - 14 x 2 1/2"

7/16-14 x 2-1/2 no. 3 plow

2шт.

475394R1

BOLT,5/8"-11 x 3 1/2", G5

5/8-11 x 3-1/2 no. 3 plow

2шт.

4

474141R1

BRACE, beam to landside LH, note B

1шт.

For super chief bottom with adjustable heel on landside rear bottom only

1шт.

4

474142R1

BRACE, beam to landside RH, note B

1шт.

For super chief bottom with adjustable heel on landside rear bottom only

1шт.

15643R1

BOLT,#3, 7/16" - 14 x 2 1/2"

7/16-14 x 2-1/2 no. 3 plow

2шт.
