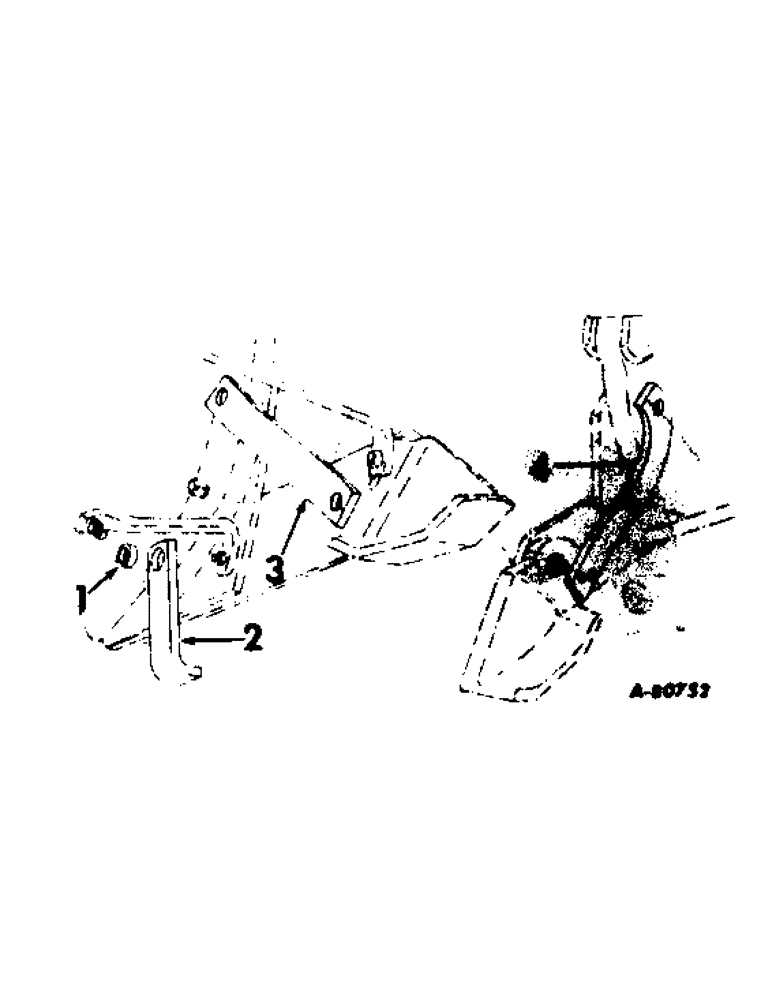

Запчасти Case IH 641 (AD-10[A]) - FIELD IMPROVEMENT PACKAGE, 1963 TO 1964, PLOWS W/SHEAR TRIP BEAM

473648R92

FRAME ASSY, trip

1шт.

522432R2

SPACER

STOP, beam

8шт.

BOLT, 5/8-11 x 3-1/4 hex-hd mach

8шт.

NUT, 5/8-11 hex

8шт.

WASHER, 5/8 med lock

8шт.

468843R1

BEAM, RH shear

4шт.

522680R2

BOLT

1-14 x 3-3/8 hex-hd dld mach

4шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex

4шт.

432-1232

COTTER PIN,3/16" OD x 2" L

PIN, 3/16 x 1-1/4 cot

4шт.

4688425R1

BEAM, LH shear

4шт.

522680R1

BOLT, 1-14 x 3-3/8 hex-hd dld mach

4шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt-hex

4шт.

432-1232

COTTER PIN,3/16" OD x 2" L

PIN, 3/16 x 1-1/4 cot

4шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, 3/4-16 x 2-3/4 hex-hd cap, in rail assy 473636R11

4шт.

NUT, 3/4-16 hex

2шт.

WASHER, 3/4 med lock

2шт.
