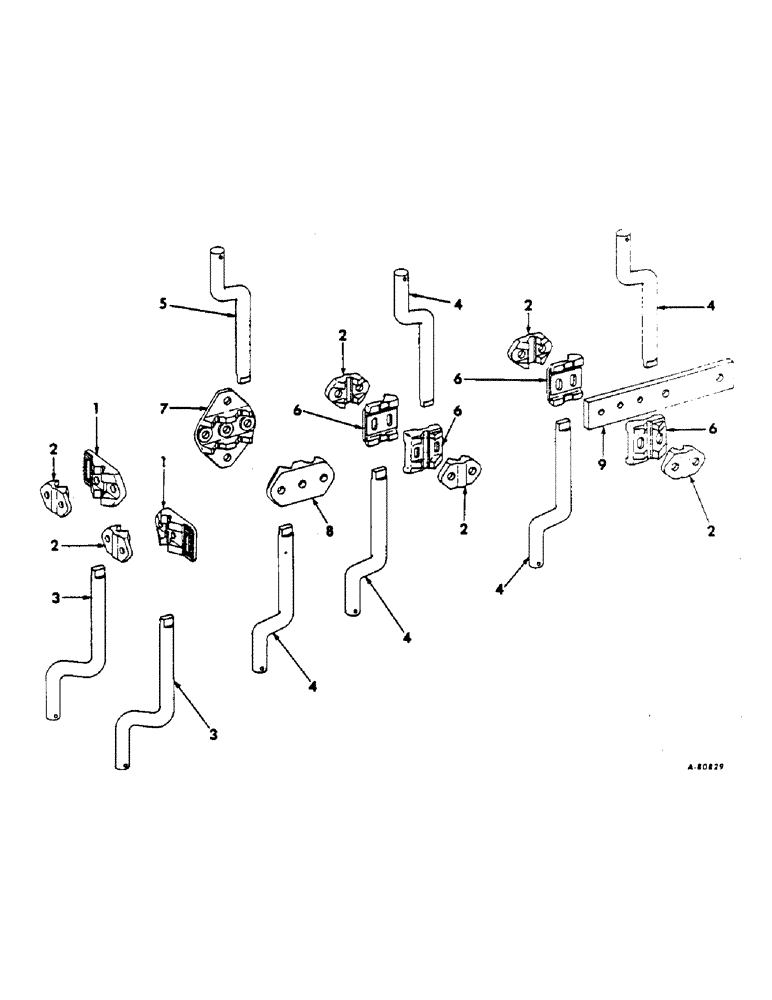

Запчасти Case IH 641 (AD-07) - COLTER SHANK AND CLAMPS
№
Артикул
Название
Примечание
Количество
1
462684R1
CLAMP
front colter, note A
2шт.
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
SCREW, 5/8-11 x 3-1/4 hex-hd cap
2шт.
102639
NUT,5/8"-11, G5
2шт.
523011R1
WASHER
front colter clamp
2шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 2-1/2 hex-hd cap
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
2
524492R1
CLAMP
CAP, colter clamp, note A
6шт.
2
524492R1
CLAMP
CAP, colter clamp, note B
4шт.
2
524492R1
CLAMP
CAP, colter clamp, note C
2шт.
273090
SCREW, 5/8-18 x 7 hex-hd cap
4шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-18 x 7 hex-hd cap, 3rd and 4th colter
2шт.
425-1110
NUT,5/8"-18, G5
4шт.
425-1110
NUT,5/8"-18, G5
2шт.
413-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
SCREW, 5/8-11 x 3-3/4 hex-hd cap, 1st colter, Course Threads
2шт.
3
466944R1
ROD
SHANK, front colter, note A
2шт.
13170R1
Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"
2шт.
4
522434R1
STEM
SHANK, second colter RH 3rd and 4th RH and LH, noted A & B
5шт.
13170R1
Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"
5шт.
4
522434R1
STEM
SHANK, second colter RH 3rd and 4th RH and LH, note C
2шт.
13170R1
Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"
2шт.
5
466944R1
ROD
SHANK, second colter LH, note A & B
1шт.
13170R1
Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"
1шт.
6
524457R3
STAPLE
CLAMP, 3rd and 4th colter, note A & B
4шт.
6
524457R3
STAPLE
CLAMP, 3rd and 4th colter, note C
2шт.
7
473646R1
CLAMP, 2nd colter, notes A & B
1шт.
425-1110
NUT,5/8"-18, G5
3шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 hex
2шт.
102639
NUT,5/8"-11, G5
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
8
462687R1
STAPLE
CAP, colter, notes A & B, 2nd colter
1шт.
9
473645R1
STRAP, stub rail
1шт.
271614
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5
SCREW, 3/4-10 x 2-3/4 hex-hd cap
2шт.
220081
NUT
3/4-10 hex
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
Выбрано товаров: 35
