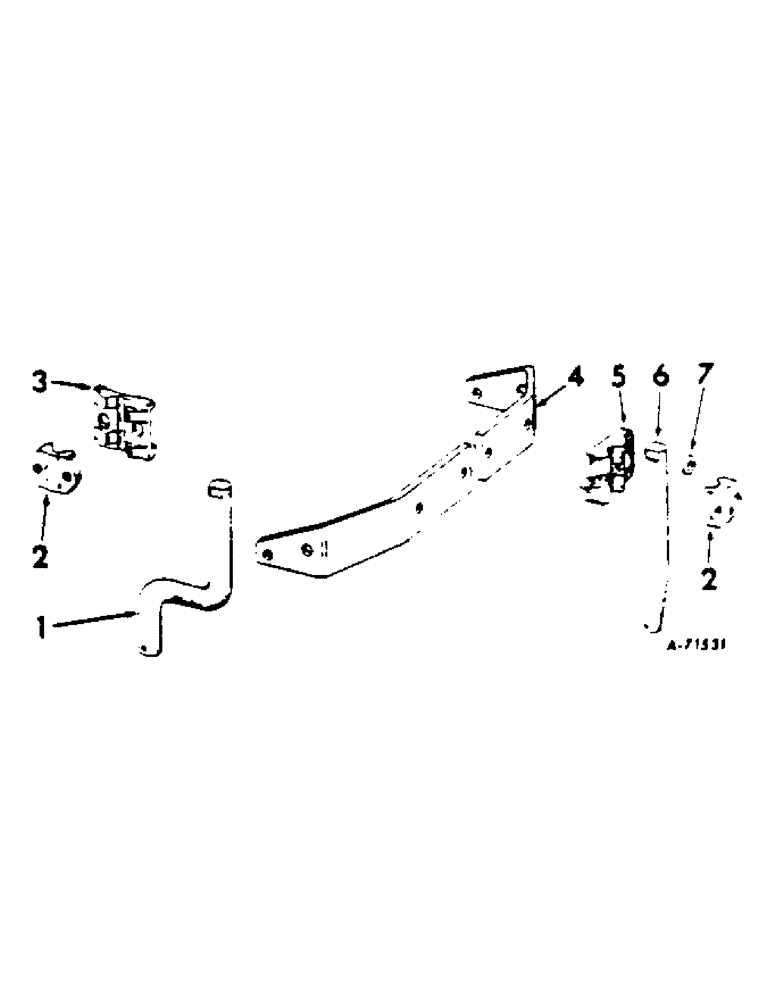

Запчасти Case IH 620 (AC-03) - COLTER SHANKS, BAR AND CLAMPS

1

469162R1

ROD

SHANK, rear colter

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.

2

524492R1

CLAMP

CAP, colter clamp

1шт.

3

524457R3

STAPLE

CLAMP, rear colter

1шт.

5/8 NUT

1шт.

5/8 x 6-1/2 HEX-HD CAP SCREW

1шт.

4

468870R1

BAR, front colter

1шт.

3/8 NUT

2шт.

3/4 x 2-1/4 HEX-HD CAP SCREW

2шт.

3/4 LOCK WASHER

2шт.

5

462684R1

CLAMP

front colter

1шт.

5/8 NUT

3шт.

5/8 x 2-1/2 HEX-HD CAP SCREW

1шт.

5/8 x 3-1/4 HEX-HD CAP SCREW

1шт.

5/8 x 4-1/4 HEX-HD CAP SCREW

1шт.

5/8 LOCK WASHER, FOR 2-1/2 CAP SCREW

1шт.

6

462686R1

SHAFT, front colter

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

1шт.

7

523011R1

WASHER

front colter clamp

1шт.
