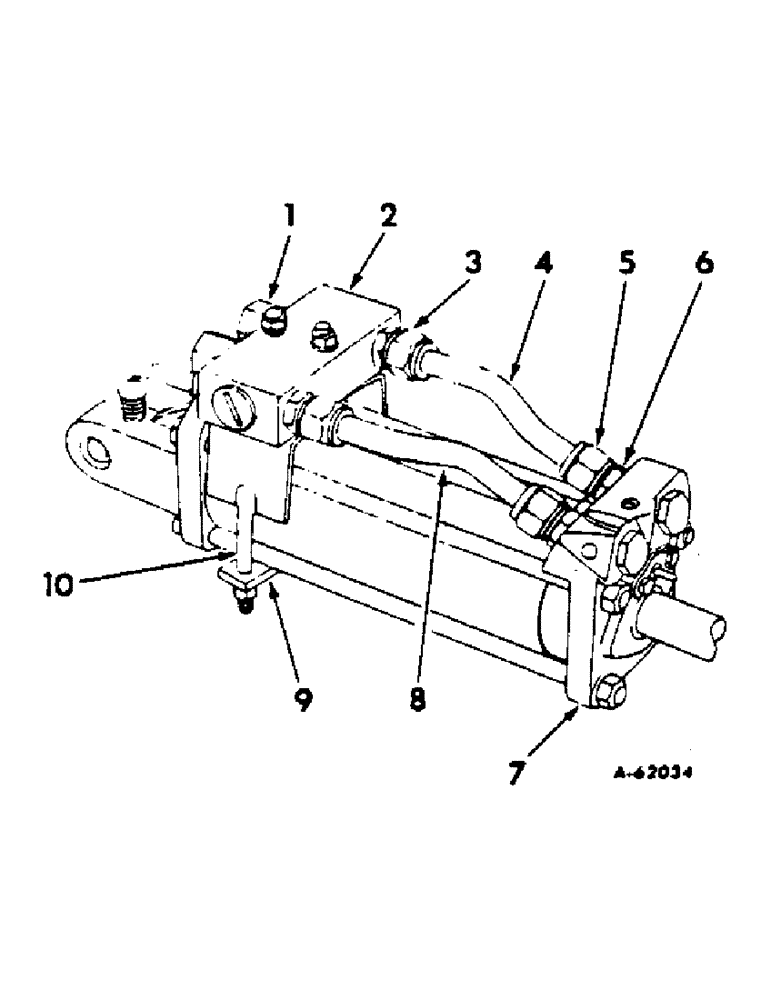

Запчасти Case IH 620 (AC-11) - CHECK VALVE AND FITTINGS

1

462869R1

UNION

ADAPTER, valve

1шт.

2

385558R91

SPARE PART

VALVE ASSY, double acting check, for components see list of parts under details of check valve

1шт.

3

463589R1

CONNECTOR W/O-RING

1шт.

4

462719R1

TUBE, adapter check valve LH

1шт.

5

265465R1

TUBE NUT

coupling

1шт.

6

462725R1

RESTRICTOR, line

1шт.

7

371291R97

CYLINDER

hydraulic, unit A, for components see list of parts under details of hydraulic cylinder

1шт.

8

462718R1

TUBE, adapter check valve RH

1шт.

9

462729R1

STRAP, block retaining

1шт.

3/8 NUT

2шт.

3/8 x 2 HEX-HD CAP SCREW

2шт.

3/8 LOCK WASHER

2шт.

10

462726R91

BRACKET, check valve retaining

1шт.

3/8 NUT

2шт.

3/8 x 2-1/2 HEX-HD CAP SCREW

1шт.

3/8 LOCK WASHER

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

463590R1

SLEEVE

coupling

1шт.

463625R1

SPACER, check valve block bracket

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 x 27/64 x 5/64, Valve adapter

1шт.
