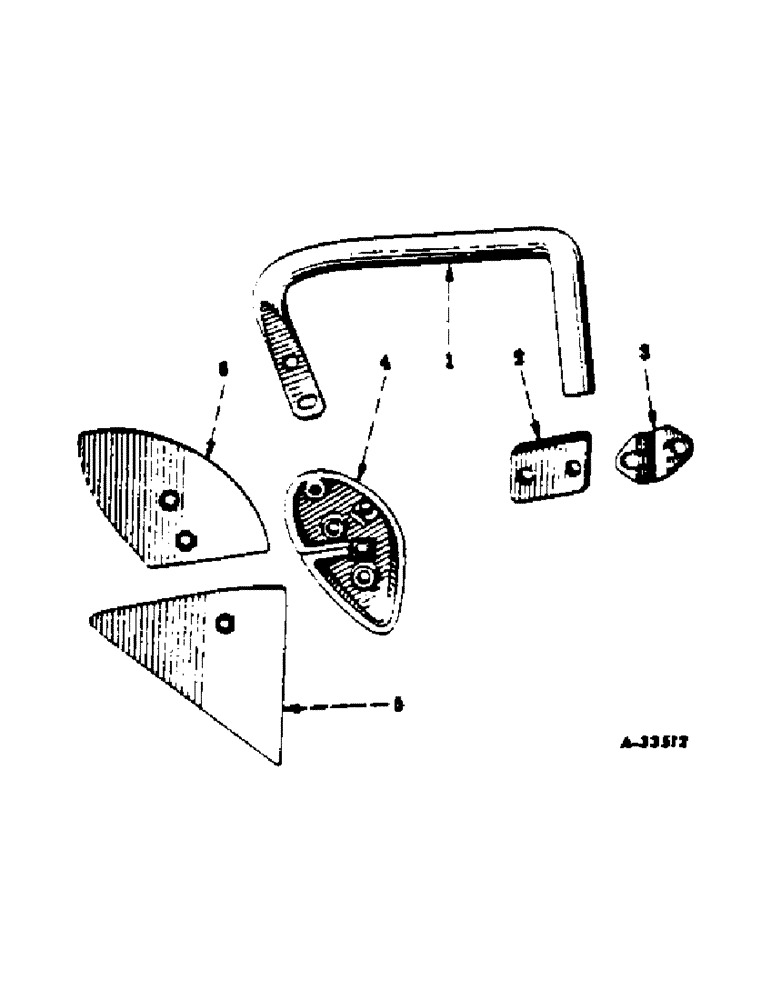

Запчасти Case IH 620 (AC-06) - JOINTER, TWO PIECE BLADE, ONE PER FURROW

1

524720R1

SHANK, left

1шт.

1

519344R1

SHANK, right

1шт.

17446

3/8-16 x 1-1/4 SQ-HD MACH BOLT

1шт.

17471

3/8 x 1-1/2 SQ-HD MACH BOLT

1шт.

Q1505

WASHER

13/32 x 1 x 16 GA WASHER

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

519343R1

BLOCK, jointer

1шт.

3

519342R1

CAP, jointer adjusting

1шт.

15126

BRACKET

1/2 x 2-3/4 CRG SQ-NK BOLT

2шт.

102637

NUT,1/2"-13, G5

2шт.

4

PO2427

FROG, left

1шт.

4

PO2426

FROG, right

1шт.

5

PO2475

SHARE, left chilled

1шт.

5

PO2226

SHARE, right chilled

1шт.

5

PO21805X

SHARE

W/BOLTS, left steel

1шт.

5

PO20092X

BLADE

SHARE W/BOLTS, right steel

1шт.

15826R1

3/8-16 x 1-3/8 NO. 7 PLOW BOLT

2шт.

102635

NUT,3/8"-16, G5

2шт.

6

PO1187

MOLDBOARD, left chilled

1шт.

6

PO1186

MOLDBOARD, right chilled

1шт.

6

S7409X

MOLDBOARD W/BOLTS, left steel

1шт.

6

S7408X

MOLDBOARD W/BOLTS, right steel

1шт.

15812R1

BOLT

3/8-16 x 1-1/8 NO. 7 PLOW BOLT

4шт.

102635

NUT,3/8"-16, G5

4шт.
