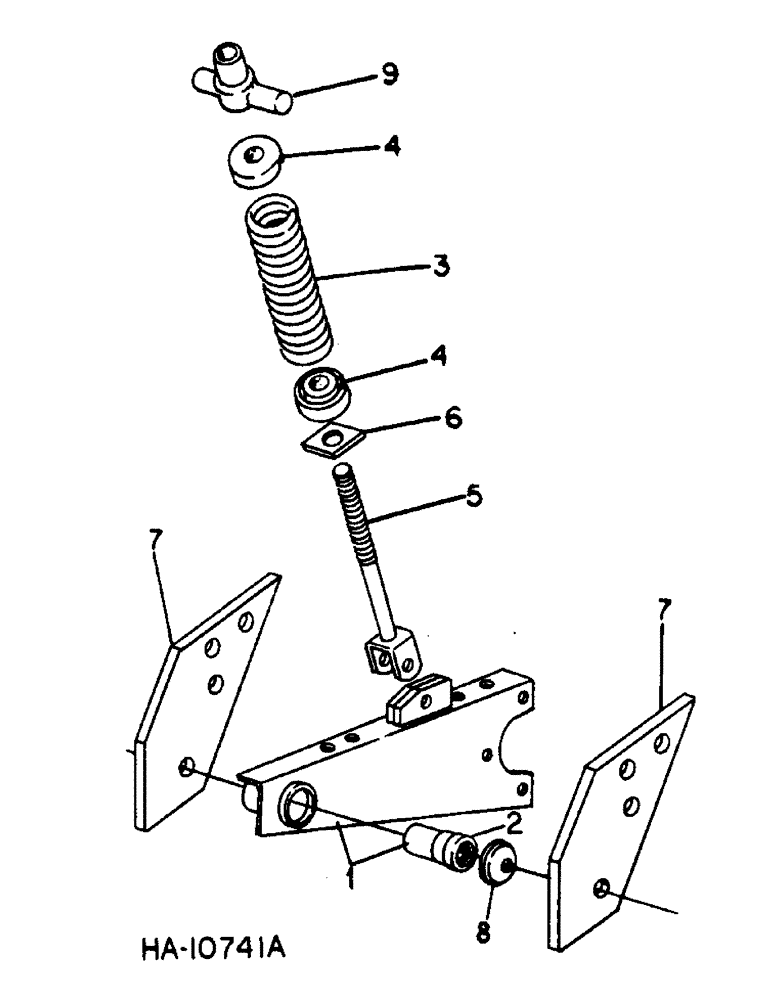

Запчасти Case IH 6000 (A-15) - GANG SUPPORT, 15 FOOT

1

810812C1

ARM

ASSY, disk gang LH

4шт.

1

810813C1

ARM

ASSY, disk gang RH

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5 (per arm assy)

3шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

5/8 x 4-3/4 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (per bolt) 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

120384

WASHER,1/2"

LOCK, , per bolt 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

464623R1

WASHER

.656 x 1.500 x .105

16шт.

2

596781R1

BUSHING,15.95mm ID x 52.32mm OD x 65.02mm L

gang pivot (per arm assy)

1шт.

3

609133R1

VALVE SPRING

SPRING, gang lift

8шт.

4

608348R1

RETAINER

PLUG, spring

16шт.

5

812409C1

ROD

ASSY, lift spring

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

8шт.

467750R1

WASHER

.781 x 1.500 x .105

8шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2. hd type 1

8шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

8шт.

6

812443C1

WASHER

spring rod

8шт.

7

810806C1

BAR

arm support

16шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5 (per bar)

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5 (per bolt)

1шт.

8

596784R1

WASHER

gang pivot

8шт.

9

812444C1

PIVOT

gang spring

8шт.
