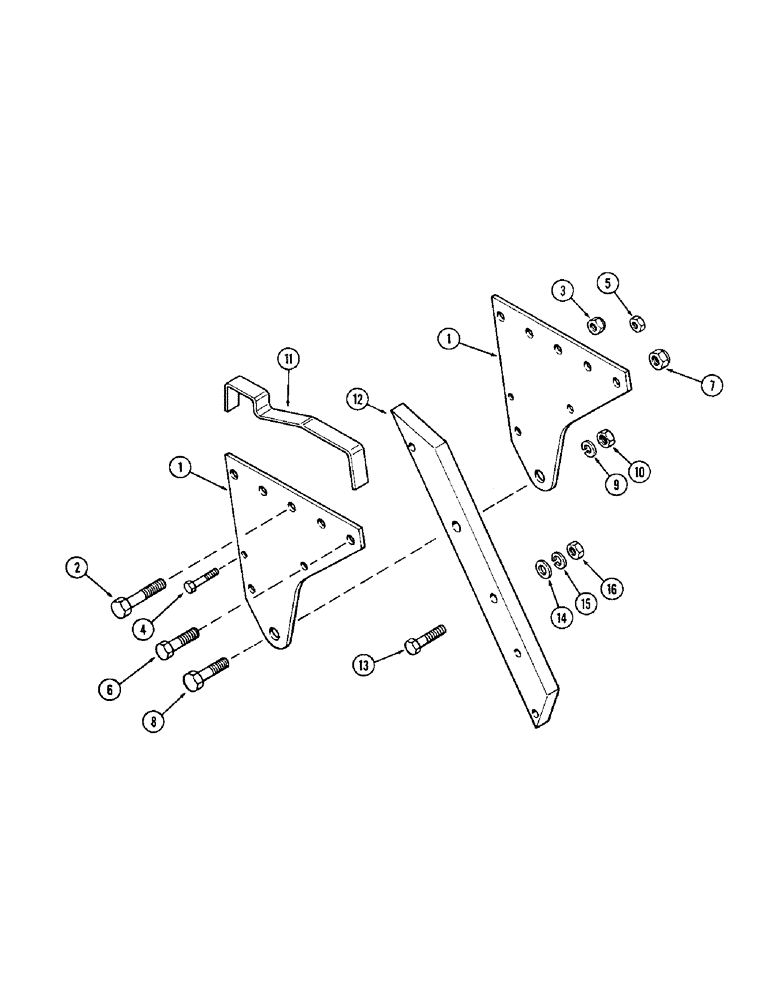

Запчасти Case IH 600-SERIES (08) - SHEAR BOLT BEAM

1

T54359

PLATE - gusset

2шт.

2

114-728

BOLT - 3/4 x 4" NF hex (Grade 8) Hex, 3/4-16 x 4", G8

1шт.

3

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

4

114-305

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 2

- 7/16 x 2-3/4" NF hex (Shear bolt) (Grade 5)

1шт.

5

425-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

6

114-726

BOLT - 3/4 x 3-1/2" NF hex (Grade 8) Hex, 3/4-16 x 3 1/2", G8

4шт.

7

131-1251

LOCK NUT,3/4"-16, GC

BOLT - 3/4 x 3" NF hex (Grade 5)

1шт.

8

114-717

BOLT,Hex, 3/4" - 16 x 3", Gr 5

Hex, 3/4"-16 x 3", G5

1шт.

9

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

10

129-128

NUT,3/4"-16, G5

- 3/4" NF hex

1шт.

11

T54361

FILLER - beam

1шт.

12

T54360

SUPPORT ASSY.

BEAM - foot

1шт.

13

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

2шт.

14

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

15

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

129-127

NUT,5/8"-18, G5

2шт.
