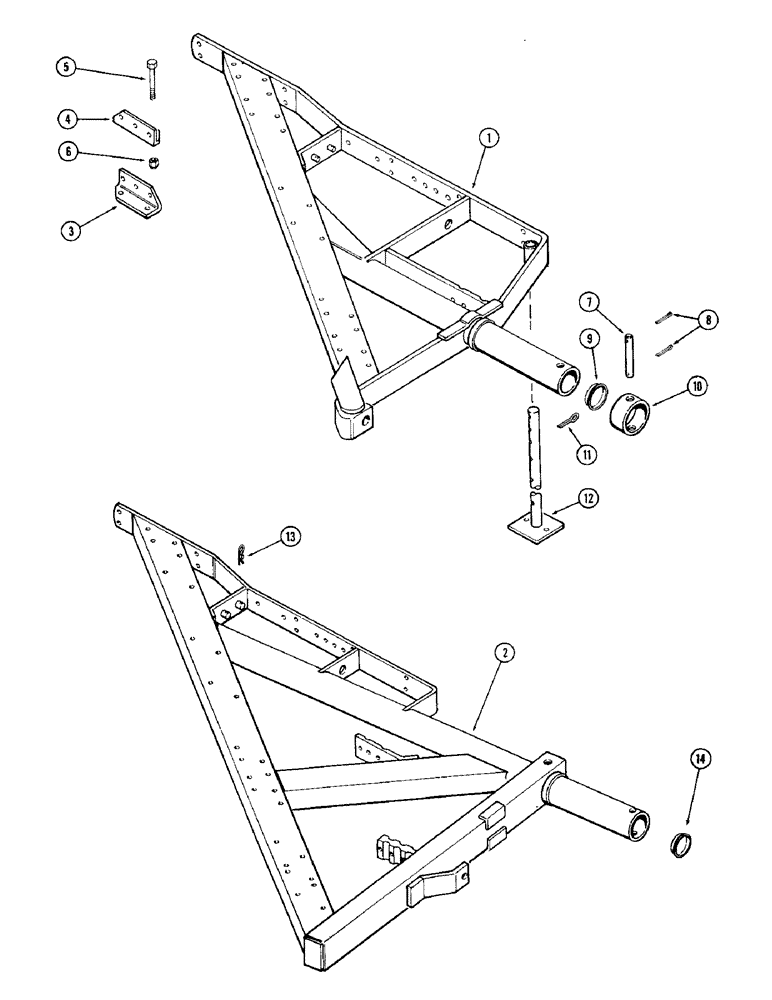

Запчасти Case IH 600-SERIES (04) - MAIN FRAME, THREE BOTTOM

1

T54346

FRAME - main, 3-Bottom

1шт.

3

T54348

SUPPORT

- LH

6шт.

4

T54347

SUPPORT

- RH

6шт.

5

114-729

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

- 3/4 x 5-3/4" NF hex (Grade 8)

12шт.

6

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

12шт.

7

T54350

PIN - collar

1шт.

8

132-359

PIN - cotter 5/16 x 2"

2шт.

9

T54351

PLUG

1шт.

10

T54349

COLLAR

1шт.

11

T51753

PIN

1шт.

12

T54352

STAND

1шт.

13

B17308

CLIP

COTTER

1шт.

2

T54366

FRAME - main, 4-Bottom

1шт.

3

T54348

SUPPORT

- LH FOUR BOTTOM

8шт.

4

T54347

SUPPORT

- RH FOUR BOTTOM

8шт.

5

114-729

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 8

- 3/4 x 5-3/4" NF hex (Grade 8) FOUR BOTTOM

16шт.

6

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, , 4 Bottom 3/4"-16, GC

16шт.

7

T54350

PIN - collar FOUR BOTTOM

1шт.

8

132-359

PIN - cotter 5/16 x 2" FOUR BOTTOM

2шт.

10

T54349

COLLAR FOUR BOTTOM

1шт.

11

T51753

PIN

FOUR BOTTOM

2шт.

12

T54352

STAND FOUR BOTTOM

1шт.

13

B17308

CLIP

COTTER FOUR BOTTOM

1шт.

14

T54367

PLUG FOUR BOTTOM

1шт.
