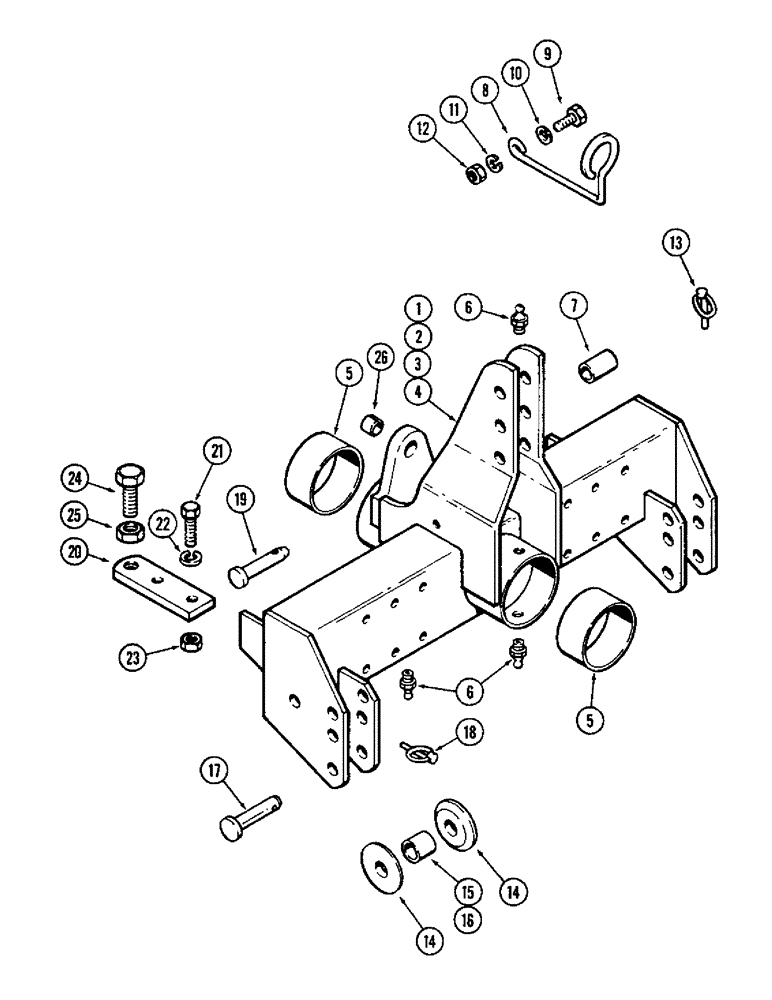

Запчасти Case IH 600-SERIES (02) - HITCH

1

T54353

TRAILER HITCH

HITCH - category two with bearings

1шт.

2

T54358

CARRIER

HITCH - category three with bearings

1шт.

3

T56525

CARRIER

HITCH - category two with bearings (T54353 can also be used)

1шт.

4

T56562

DRAWBAR

HITCH - category three with bearings (T54358 can also be used)

1шт.

5

T54354

BUSHING

BEARING

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

3шт.

7

T54443

SPACER

1шт.

8

T54357

SUPPORT - hose

1шт.

9

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

10

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

1шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

129-107

NUT,5/8"-11, G5

1шт.

13

A33509

PIN,11.18mm OD

- (Category three)

1шт.

14

T54440

GUIDE - lower link

4шт.

15

T54441

BUSHING - category three (Without quick coupler)

2шт.

16

T54442

BUSHING - category three (With quick coupler)

2шт.

17

T54356

PIN - hitch category two

2шт.

18

A33509

PIN,11.18mm OD

2шт.

19

T54550

PIN - upper link (Category three)

1шт.

20

T54355

BAR

- stop

2шт.

21

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex (Grade 5)

4шт.

22

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

23

129-108

NUT,3/4"-10, G5

4шт.

24

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

2шт.

25

129-150

NUT,Jam, 1"-8, G5

- 1" NC hex

2шт.

26

T56691

BUSHING

- cylinder mount

1шт.
