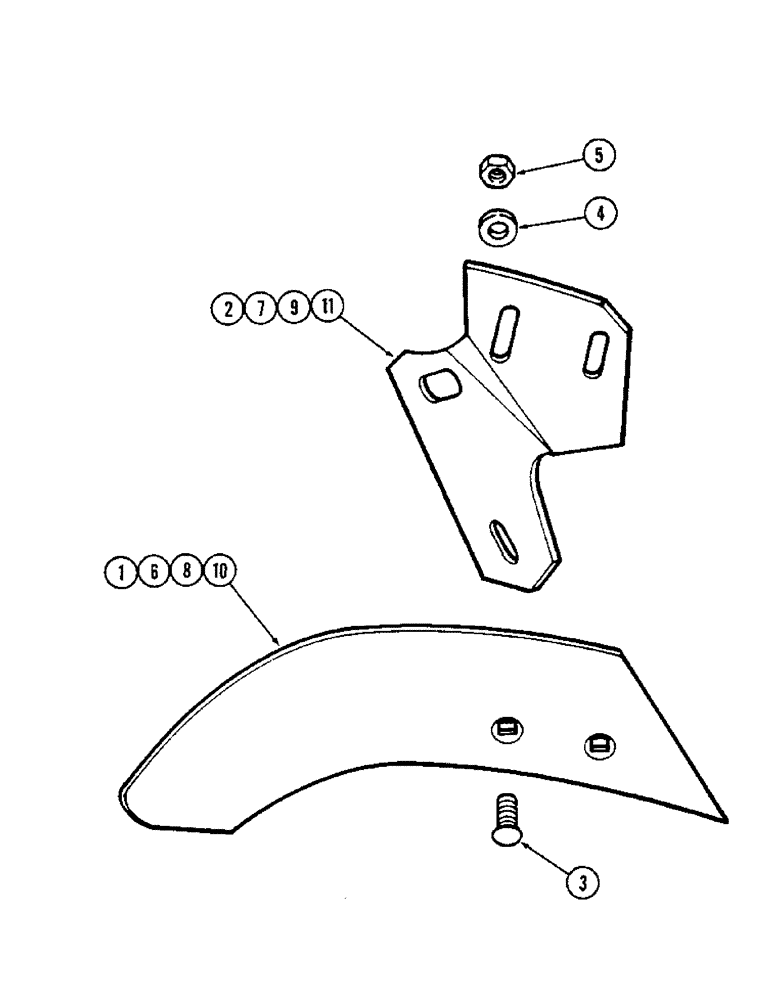

Запчасти Case IH 600-SERIES (44) - TRASHBOARDS, GENERAL PURPOSE BOTTOM, RIGHT HAND

1

T54227

BOTTOM

TRASHBOARD

1шт.

2

T54228

BRACKET

- trashboard

1шт.

3

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5)

2шт.

4

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

3

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5) LEFT HAND

2шт.

4

195-104

WASHER,3/8"

- 1 x 7/16" 14 gauge LEFT HAND

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , LH 3/8"-16, G5

2шт.

6

T54417

BOARD

TRASHBOARD LEFT HAND

1шт.

7

T54418

BRACKET

- trashboard LEFT HAND

1шт.

3

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5) STUBBLE BOTTOM RIGHT HAND

2шт.

4

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge STUBBLE BOTTOM RIGHT HAND

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Stubble bottom, RH 3/8"-16, G5

2шт.

8

T54229

BOTTOM

TRASHBOARD STUBBLE BOTTOM RIGHT HAND

1шт.

9

T54230

BRACKET - trashboard STUBBLE BOTTOM RIGHT HAND

1шт.

3

118-138

PLOW BOLT,3/8"-16 x 1 1/4", G5

BOLT - plow 3/8 x 1-1/4" NC (Grade 5) LEFT HAND

2шт.

4

195-104

WASHER,3/8"

- 1 x 7/16" x 14 gauge LEFT HAND

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , LH 3/8"-16, G5

2шт.

10

T54419

JOINTER

TRASHBOARD LEFT HAND

1шт.

11

T54420

BRACKET

- trashboard LEFT HAND

1шт.
