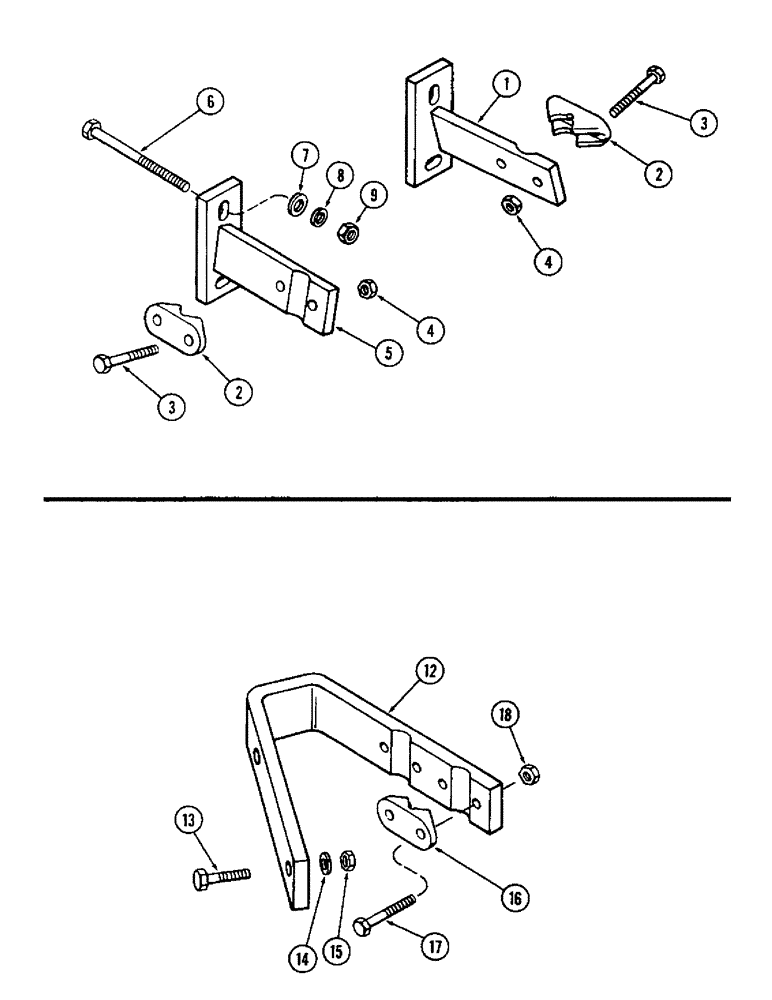

Запчасти Case IH 600-SERIES (42) - COULTER BRACKETS, THREE AND FOUR BOTTOM IN FURROW HITCH

1

T54411

ARM - coulter LH

1шт.

2

T54199

CAP

- coulter arm

2шт.

3

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

4

129-107

NUT,5/8"-11, G5

4шт.

5

T54412

ARM - coulter RH

1шт.

6

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

4шт.

7

195-541

WASHER,5/8", SAE

- 1-5/16 x 21/32" x 14 gauge

4шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

129-107

NUT,5/8"-11, G5

4шт.

12

T54414

ARM - coulter COULTER ARM FOR FRAME EXTENSION

1шт.

13

114-601

BOLT

BOLT - 5/8 x 2-1/2" NF hex (Grade 5) COULTER ARM FOR FRAME EXTENSION

2шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Coulter arm for frame extension 5/8"

2шт.

15

129-127

NUT,5/8"-18, G5

Coulter arm for frame extension 5/8"-18, G5

2шт.

16

T54199

CAP

- coulter COULTER ARM FOR FRAME EXTENSION

2шт.

17

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Coulter arm for frame extension Hex, 5/8"-11 x 3 1/4", G5

4шт.

18

129-107

NUT,5/8"-11, G5

Coulter arm for frame extension 5/8"-11, G5

4шт.
