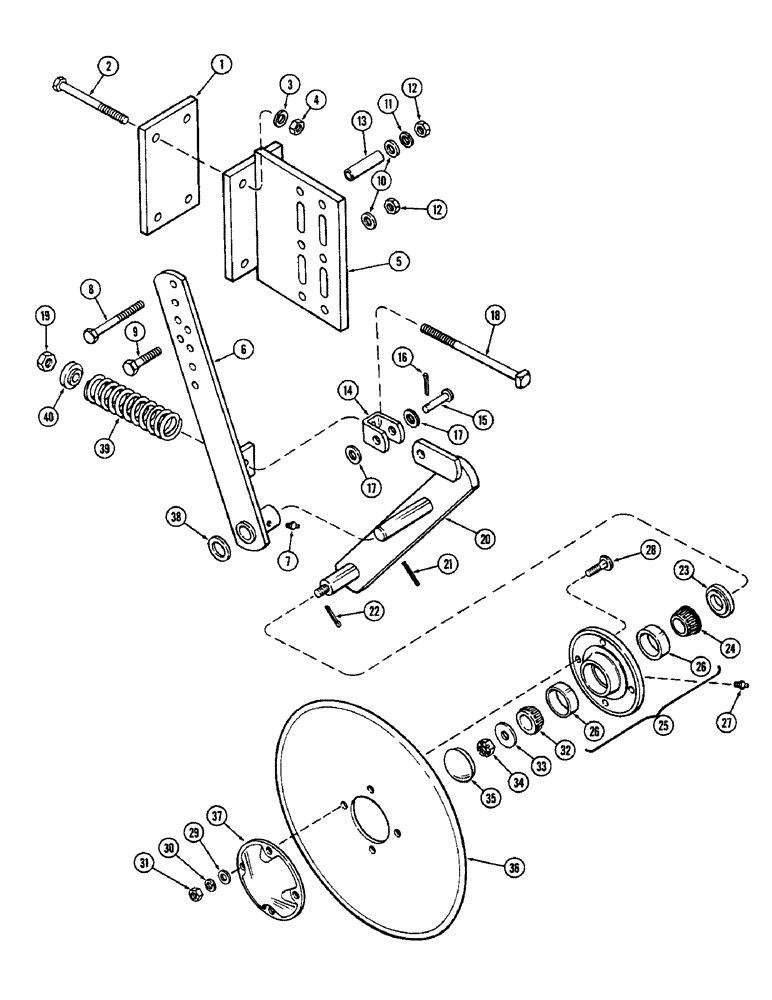

Запчасти Case IH 600-SERIES (40) - SPRING CUSHION COULTER, ANTI-FRICTION BEARING

1

T54416

PLATE - attachment

1шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8 x 6" NC hex (Grade 5)

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

129-107

NUT,5/8"-11, G5

4шт.

5

T54415

BRACKET - coulter

1шт.

6

T54408

ATM - vertical

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

8

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" NC hex (Grade 5)

2шт.

9

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

10

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

6шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

129-107

NUT,5/8"-11, G5

6шт.

13

T54410

SPACER

2шт.

14

T54203

CLEVIS

1шт.

15

K2039

PIN

- 5/8 x 2"

1шт.

16

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

17

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

18

117-505

BOLT,Sq Hd, 5/8" - 11 x 9", Gr 5

- 5/8 x 9" NC square head (Grade 5)

1шт.

19

129-107

NUT,5/8"-11, G5

1шт.

20

T54201

ARM

- coulter

1шт.

21

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

22

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

23

T54192

SPACER

- coulter

1шт.

24

T17079

CUP

CONE - bearing inner

1шт.

25

T54190

HUB

ASSEMBLY - with cups

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

28

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

4шт.

29

195-533

WASHER,1/2", SAE

- 1-1/16 x 17/32" x 14 gauge

4шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

32

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

1шт.

33

T54251

WASHER

- 1-3/4 x 11/16"

1шт.

34

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

35

T54197

CAP

- hub

1шт.

36

T54409

BLADE - disk 18" plain

1шт.

37

T54194

CAP

- disk

1шт.

38

T54169

WASHER - wear

1шт.

39

T54204

SPRING

- cushion

1шт.

40

T54205

WASHER

- spring

1шт.
