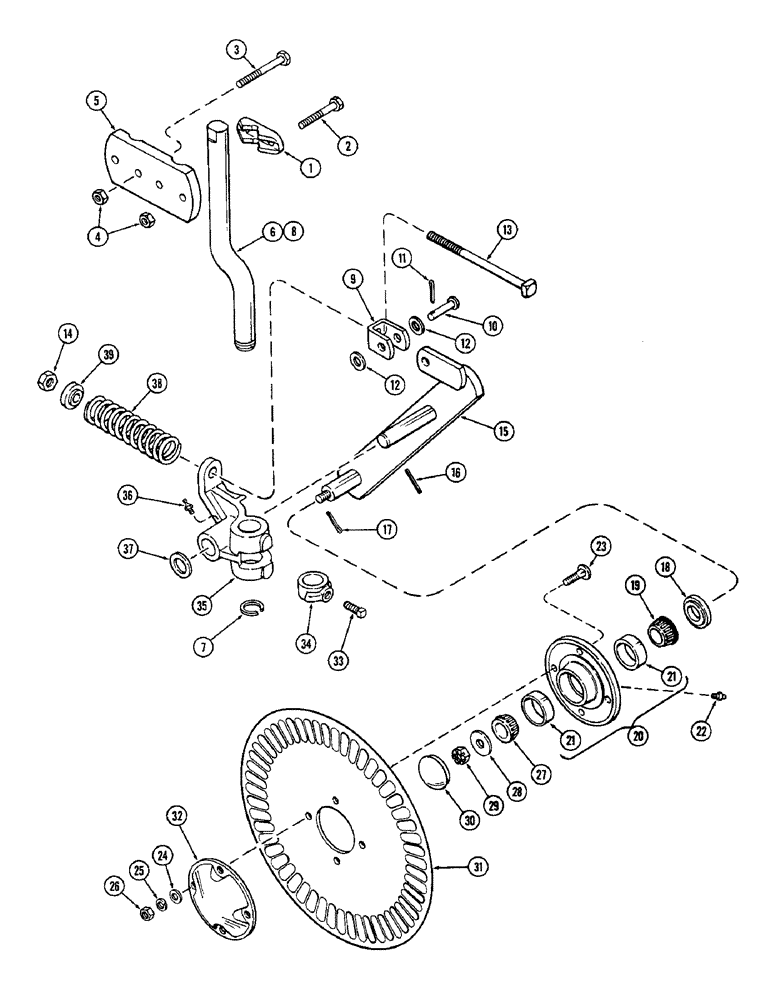

Запчасти Case IH 600-SERIES (38) - CUSHION COULTER, ANTI-FRICTION BEARING
№
Артикул
Название
Примечание
Количество
1
T54199
CAP
- coulter block
1шт.
2
113-627
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
2шт.
3
113-618
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- 5/8 x 4" NC hex (Grade 5)
4шт.
4
129-107
NUT,5/8"-11, G5
6шт.
5
T54413
BLOCK - coulter
1шт.
6
T63223
CRANK
ASSEMBLY - 17-1/4" with retaining ring
1шт.
7
T54198
RING
- retaining
1шт.
8
T56347
CRANK
- 19-1/4"
1шт.
9
T54203
CLEVIS
1шт.
10
K2039
PIN
- 5/8 x 2"
1шт.
11
132-312
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
1шт.
12
195-108
WASHER,5/8"
- 1-3/4" x 11/16" x 10 gauge
2шт.
13
117-508
BOLT,Sq Hd, 5/8" - 11 x 12", Gr 5
- 5/8 x 12" NC square head (Grade 5)
1шт.
14
129-107
NUT,5/8"-11, G5
1шт.
15
T54201
ARM
- coulter
1шт.
16
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
1шт.
17
132-335
COTTER PIN,1/8" x 1 1/4"
1/8" x 1-1/4"
1шт.
18
T54192
SPACER
- coulter
1шт.
19
T17079
CUP
CONE - bearing inner
1шт.
20
T54190
HUB
ASSEMBLY - with cups
1шт.
21
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
CUP - bearing
2шт.
22
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease 1/8"
1шт.
23
111-524
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5
BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)
4шт.
24
195-533
WASHER,1/2", SAE
- 1-1/16 x 17/32" x 14 gauge
4шт.
25
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
26
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
27
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
CONE - bearing outer
1шт.
28
T54251
WASHER
- 1-3/4 x 11/16"
1шт.
29
129-610
SLOTTED NUT,5/8"-18, G5
1шт.
30
T54197
CAP
- hub
1шт.
31
T54334
PLOW DISC
BLADE - disk 18" ripple
1шт.
32
T54194
CAP
- disk
1шт.
33
181-812
SET SCREW,Sq Hd, 5/8"-11 x 1"
- 5/8 x 1"
1шт.
34
T54206
COLLAR
1шт.
35
T54202
PIVOT
BEARING - pivot
1шт.
36
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease 1/8"
1шт.
37
T54169
WASHER - wear
1шт.
38
T54210
SPRING
- cushion
1шт.
39
T54205
WASHER
- spring
1шт.
Выбрано товаров: 39
