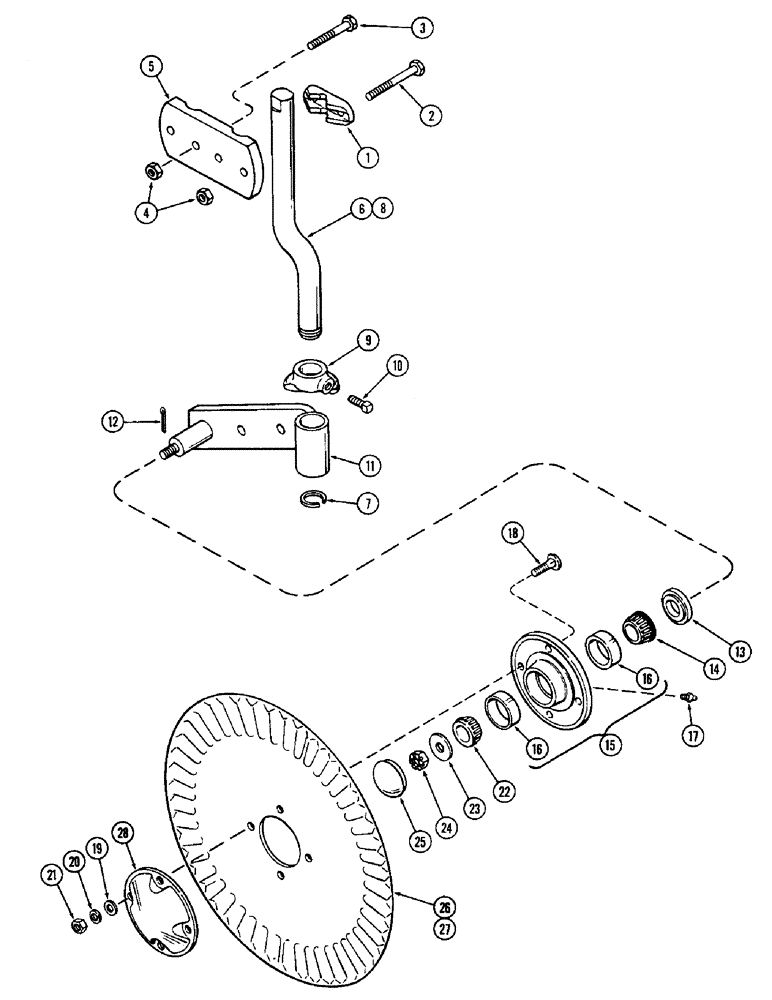

Запчасти Case IH 600-SERIES (36) - RIGID COULTER, ANTI-FRICTION BEARING

1

T54199

CAP

- coulter block

1шт.

2

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

3

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5)

4шт.

4

129-107

NUT,5/8"-11, G5

6шт.

5

T54413

BLOCK - coulter

1шт.

6

T63223

CRANK

ASSEMBLY - 17-1/4" with retaining ring

1шт.

7

T54198

RING

- retaining

1шт.

8

T56347

CRANK

- 19-1/4"

1шт.

9

T54195

COLLAR

1шт.

10

181-812

SET SCREW,Sq Hd, 5/8"-11 x 1"

- 5/8 x 1"

1шт.

11

T54191

ARM - spindle

1шт.

12

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

13

T54192

SPACER

- coulter

1шт.

14

T17079

CUP

CONE - bearing inner

1шт.

15

T54190

HUB

ASSEMBLY - with cups

1шт.

16

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

18

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

4шт.

19

195-533

WASHER,1/2", SAE

- 1-1/16 x 17/32" x 14 gauge

4шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

22

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer

1шт.

23

T54251

WASHER

- 1-3/4 x 11/16"

1шт.

24

129-610

SLOTTED NUT,5/8"-18, G5

1шт.

25

T54197

CAP

- hub

1шт.

26

T54334

PLOW DISC

BLADE - disk 18" ripple

1шт.

27

T54196

DISC

BLADE - disk 20" ripple

1шт.

28

T54194

CAP

- disk

1шт.
