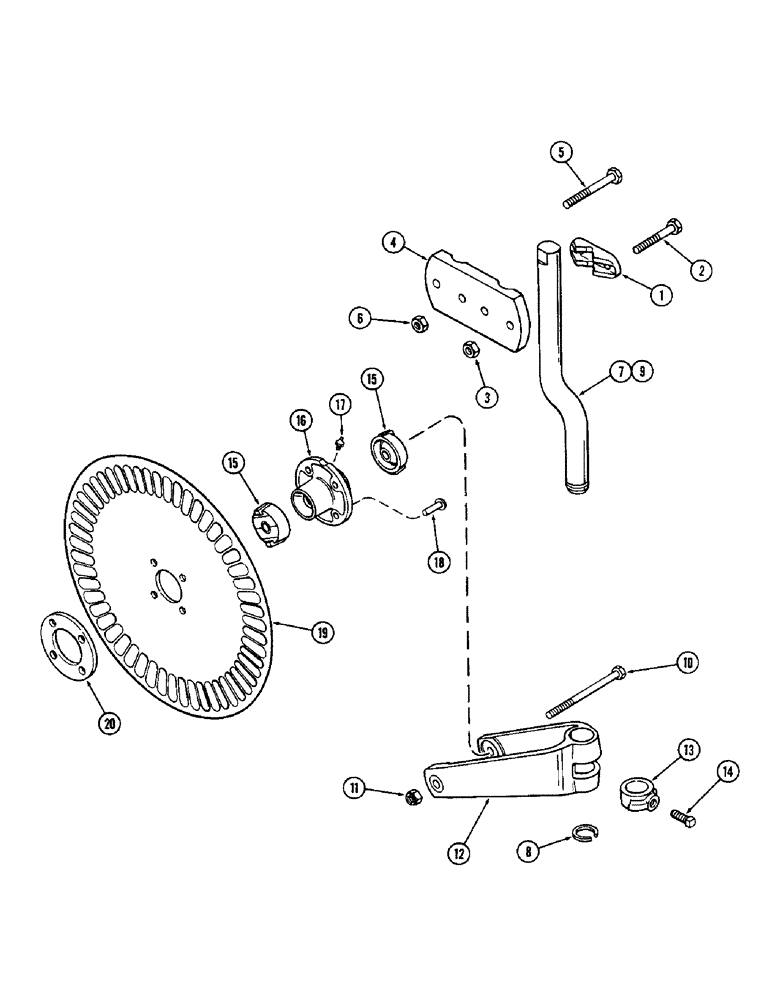

Запчасти Case IH 600-SERIES (34) - RIGID COULTER, PLAIN BEARING

1

T54199

CAP

- coulter block

1шт.

2

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

3

129-107

NUT,5/8"-11, G5

2шт.

4

T54413

BLOCK - coulter

1шт.

5

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex (Grade 5)

4шт.

6

129-107

NUT,5/8"-11, G5

4шт.

7

T63223

CRANK

ASSEMBLY - 17-1/4" with retaining ring

1шт.

8

T54198

RING

- retaining

1шт.

9

T56347

CRANK

- 19-1/4"

1шт.

10

113-2425

BOLT,Hex, 1/2" - 13 x 6", Gr 2

- 1/2 x 6" NC hex (Grade 2)

1шт.

11

131-1116

LOCK NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

1шт.

12

T54332

YOKE - coulter

1шт.

13

T54206

COLLAR

1шт.

14

181-812

SET SCREW,Sq Hd, 5/8"-11 x 1"

- 5/8 x 1"

1шт.

15

T54333

CONE

BEARING - cone

2шт.

16

T54330

HUB

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

18

45-520

RIVET - 5/16 x 1-1/4" round head

4шт.

19

T54329

PLOW DISC

BLADE - disk 18" ripple

1шт.

20

T54331

REINFORCEMENT - hub

1шт.
