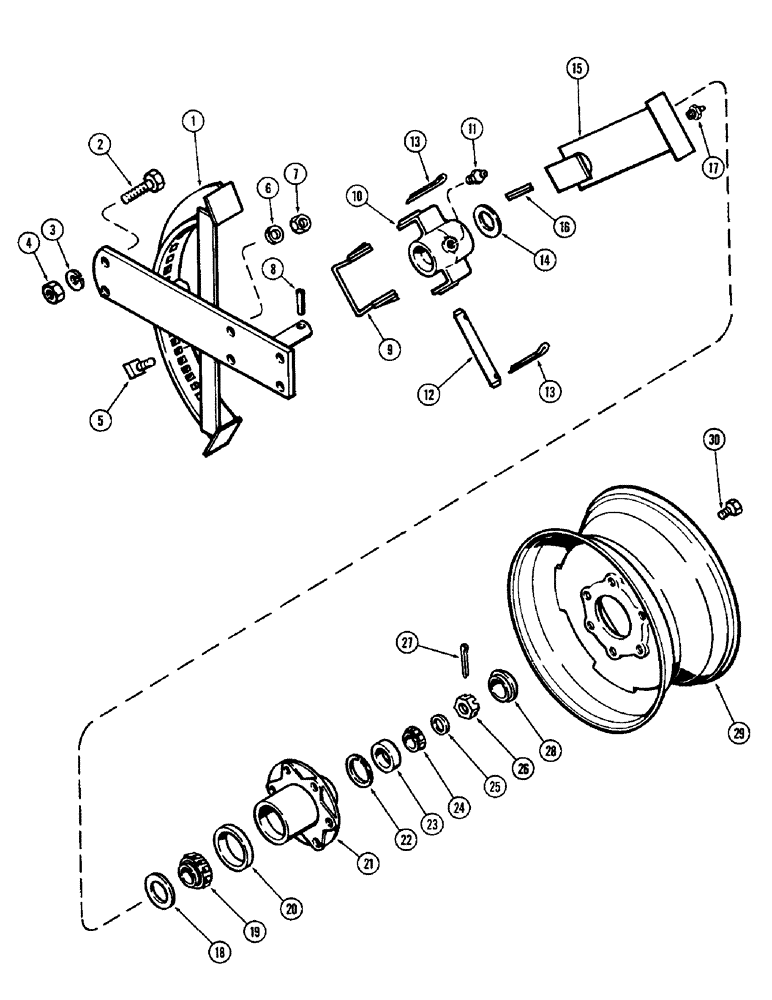

Запчасти Case IH 600-SERIES (32) - GAUGE WHEEL

1

T54403

SUPPORT - gauge wheel

1шт.

2

114-715

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

Hex, 3/4"-16 x 2 1/2", G5

4шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

129-128

NUT,3/4"-16, G5

- 3/4" NF hex

4шт.

5

T54407

BOLT

- gauge wheel stop

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

9

T54402

SPRING

1шт.

10

T54404

PIVOT

- yoke

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

12

T54406

PIN - pivot

1шт.

13

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

14

T54405

WASHER - thrust

1шт.

15

T54398

ARM

- gauge wheel

1шт.

16

135-142

GROOVED PIN,3/8" x 2 1/4", Type A, Hardened

Pin, Grooved, 3/8" x 2 1/4", Type A, Hardened

1шт.

17

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" x 45 degrees

1шт.

18

T39278

SEAL

- oil

1шт.

19

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - bearing inner

1шт.

20

A26535

BEARING CUP,2.717" OD x 0.625"

CUP - bearing inner

1шт.

21

T54399

HUB

- wheel

1шт.

22

T54400

RING, SNAP,1.938", Int, #193

1шт.

23

A30318

BEARING, CUP

CUP - bearing outer

1шт.

24

A30611

ROLLER BEARING

CONE - bearing outer

1шт.

25

195-545

WASHER,3/4", SAE

- 1-15/32 x 13/16" x 12 gauge

1шт.

26

86632554

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" NF hex slotted

1шт.

27

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

28

F63222

DUST CAP,53.98mm OD x 34.92mm W

CAP - hub

1шт.

29

T53527

WHEEL

- 15 x 5"

1шт.

30

A30064

BOLT

- wheel

6шт.
