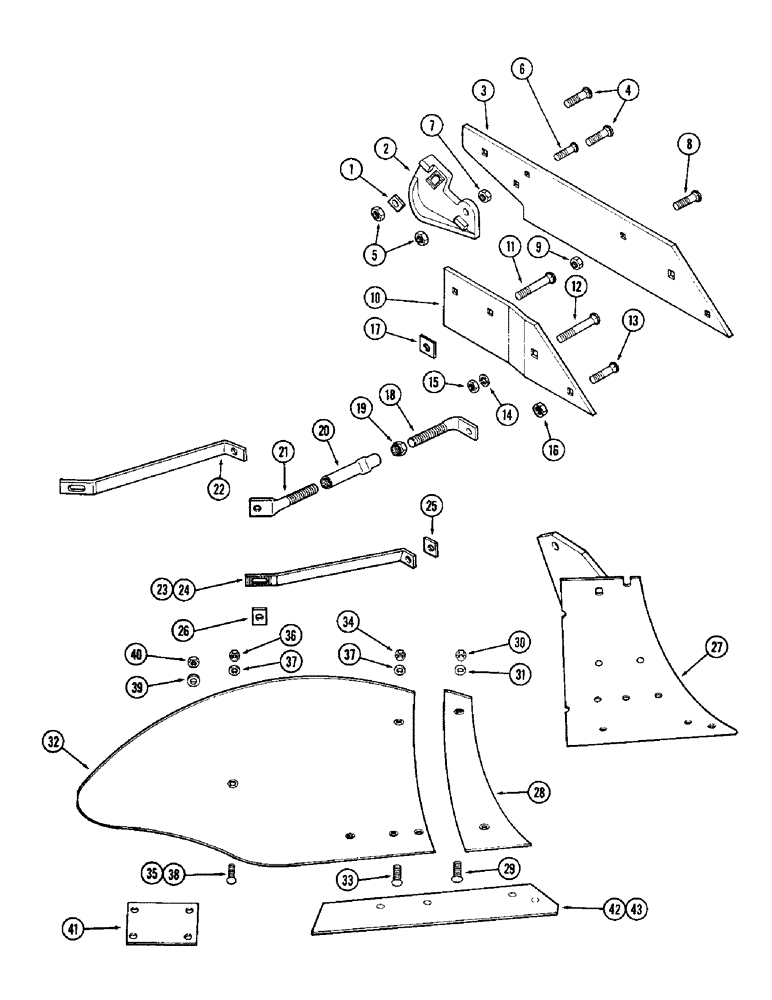

Запчасти Case IH 600-SERIES (26) - BOTTOM, 18 INCH STUBBLE, LEFT HAND

1

T54383

WASHER

1шт.

2

T54392

HEEL

- long landside

1шт.

3

T54391

LANDSIDE

- long

1шт.

4

118-324

BOLT - plow 1/2 x 1-3/4" NC (Grade 2)

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

T54389

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

7

129-104

NUT,7/16"-14, G5

1шт.

8

T54390

BOLT - plow 7/16 x 1-3/4" NC (Grade 5)

1шт.

9

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NC hex

1шт.

10

T54374

LANDSIDE

- short

1шт.

11

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8" x 3" NC (Grade 8)

1шт.

12

118-417

PLOW BOLT,5/8"-11 x 2 3/4", G5

BOLT - plow 5/8 x 2-3/4" NC (Grade 5)

1шт.

13

118-419

PLOW BOLT,5/8"-11 x 1 3/4", G5

BOLT - plow 5/8 x 1-3/4" NC (Grade 5)

1шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

129-107

NUT,5/8"-11, G5

2шт.

16

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex

1шт.

17

T55455

SPACER - 3/4 x 2"

1шт.

18

T54396

STUD

- adjusting RH

1шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex

1шт.

20

T54386

TUBE,0.546" ID x 0.84" OD x 8.25" L

- adjusting

1шт.

21

T54387

STUD

- adjusting LH

1шт.

22

T54247

BRACE

-, Serial Range: standard-plate

1шт.

23

T54377

BRACE - moldboard to short landside

1шт.

24

T54397

BRACE - moldboard to standard (Long landside)

1шт.

25

T55456

SPACER - 3/8 x 1-1/2"

1шт.

26

T52460

WASHER

1шт.

27

T54378

STANDARD

1шт.

28

T63189

SHIN

PLATE ASSEMBLY

1шт.

29

T54432

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

30

129-104

NUT,7/16"-14, G5

2шт.

31

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

32

T63190

MOLDBOARD ASSEMBLY

1шт.

33

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

5шт.

34

129-104

NUT,7/16"-14, G5

5шт.

35

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

36

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NC hex

1шт.

37

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

38

118-218

BOLT

- plow 7/16 x 2" NC (Grade 5)

1шт.

39

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

40

129-104

NUT,7/16"-14, G5

1шт.

41

T54381

PLATE -, Serial Range: moldboard-share

1шт.

42

T63201

SHARE

ASSEMBLY - regular with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

4шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

43

T63207

SHARE

- hard surfaced deep suck less bolts

1шт.
