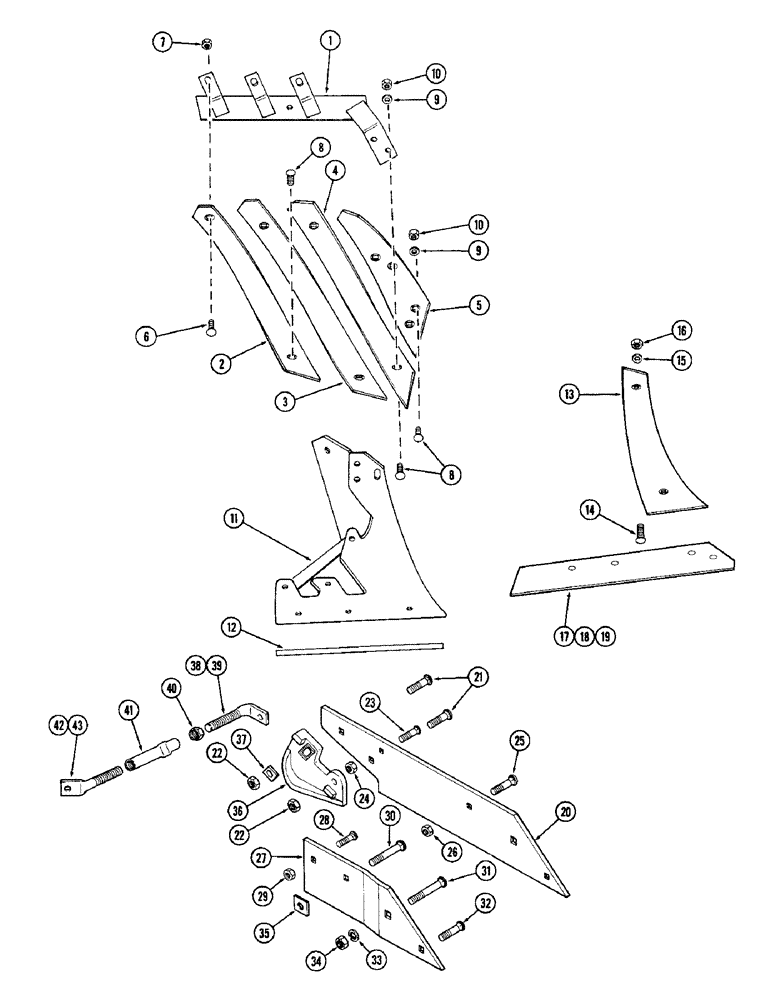

Запчасти Case IH 600-SERIES (22) - BOTTOM, 16 INCH SLAT, LEFT HAND

1

T54496

BRACKET - slat

1шт.

2

T54495

SLAT - number four

1шт.

3

T54494

SLAT - number three

1шт.

4

T54493

SLAT - number two

1шт.

5

T54492

SLAT

- number one

1шт.

6

T54237

PLOW BOLT

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

5шт.

7

129-104

NUT,7/16"-14, G5

5шт.

8

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

5шт.

9

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

10

129-104

NUT,7/16"-14, G5

5шт.

11

T54490

STANDARD

1шт.

12

T54482

FILLER - share

1шт.

13

T54491

SHIN

PLATE -

1шт.

14

T54236

PLOW BOLT

BOLT - plow 7/16 x 1-1/4" NC (Grade 5)

2шт.

15

195-105

WASHER,7/16"

- 1-1/4 x 1/2" x 14 gauge

2шт.

16

129-104

NUT,7/16"-14, G5

2шт.

17

T63198

SHARE

ASSEMBLY - regular with nuts

1шт.

18

T63199

SHARE

ASSEMBLY - long with nuts

1шт.

T52464

NUT

- 7/16" NC hex LH

3шт.

T52465

NUT

- 1/2" NC hex LH

1шт.

19

T63209

SHARE

- hard surfaced deep suck less bolts

1шт.

20

T54391

LANDSIDE

- long

1шт.

21

118-324

BOLT - plow 1/2 x 1-3/4" NC (Grade 2)

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

23

T54389

BOLT - plow 7/16 x 1-1/2" NC (Grade 5)

1шт.

24

129-104

NUT,7/16"-14, G5

1шт.

25

114-303

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

- 7/16 x 1-1/2" NF hex (Grade 5)

1шт.

26

131-687

NUT - lock 7/16" NF hex

1шт.

27

T54374

LANDSIDE

- short

1шт.

28

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- 7/16 x 1-1/4" NF hex (Grade 5)

1шт.

29

131-667

NUT,7/16"-14, GB

NUT - lock 7/16" NF hex

1шт.

30

118-426

BOLT,5/8"-11 x 3", G8

BOLT - plow 5/8 x 3" NC (Grade 8)

1шт.

31

118-416

PLOW BOLT,5/8"-11 x 2 1/2", G5

BOLT - plow 5/8 x 2-1/2" NC (Grade 5)

1шт.

32

118-419

PLOW BOLT,5/8"-11 x 1 3/4", G5

BOLT - plow 5/8 x 1-3/4" NC (Grade 5)

1шт.

33

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

34

129-107

NUT,5/8"-11, G5

3шт.

35

T55455

SPACER - 3/4 x 2"

1шт.

36

T54392

HEEL

- long landside

1шт.

37

T54383

WASHER

1шт.

38

T54480

STUD - adjusting RH

1шт.

39

T54499

STUD - adjusting RH (Long landside)

1шт.

40

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex

1шт.

41

T54386

TUBE,0.546" ID x 0.84" OD x 8.25" L

- adjusting

1шт.

42

T54481

STUD - adjusting LH

1шт.

43

T54500

STUD

- adjusting LH (Long landside)

1шт.
