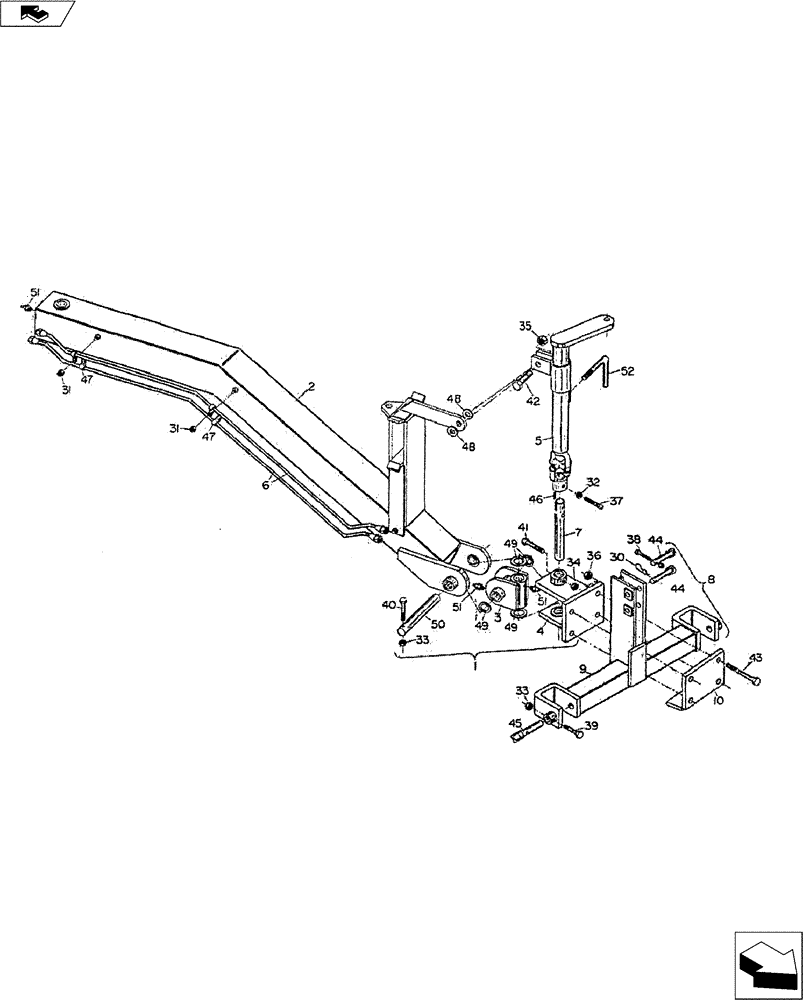

Запчасти Case IH 600 SERIES (39.100.02) - BEAM ASSEMBLY MODEL 600 (39) - FRAMES AND BALLASTING

1

49600020

Includes Ref. 2-7 & hardware

1шт.

2

49603000

1шт.

3

49605000

1шт.

4

49613000

1шт.

5

49604000

1шт.

6

25650802

2шт.

7

49615000

1шт.

8

49616000

3-Point Hitch Assy. (Cat 2)

1шт.

8

49611000

3-Point Hitch Assy. (Cat 3)

1шт.

9

49616100

(Cat 2)

1шт.

9

49611100

(Cat 3)

1шт.

10

49614000

1шт.

30

NSS

NOT SOLD SEPARAT

3/16" Hair Pin (Cat #2)

1шт.

31

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

3шт.

32

NSS

NOT SOLD SEPARAT

3/8" NC Jam Nut

1шт.

33

NSS

NOT SOLD SEPARAT

1/2" NC Lock Nut ZP

5шт.

34

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

1шт.

35

NSS

NOT SOLD SEPARAT

7/8" NC Lock Nut

1шт.

36

NSS

NOT SOLD SEPARAT

1" NC Hex. Nut

4шт.

37

16806064

3/8" X 1-1/2" NC Sq. Hd Set Screw Gd 5

1шт.

38

424-832

BOLT,Hex, 1/2" - 13 x 2", Gr 2

NC ZP (Cat #3)

1шт.

39

424-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 2

NC ZP

2шт.

40

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

NC ZP

1шт.

41

16012164

BOLT

3/4" X 4" NC Hex. Gd 5

1шт.

43

426-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

NC

4шт.

44

14816395

CLEVIS

1" x 4-7/8" EL Pin (Cat #2)

1шт.

44

14820365

1-1/4" x 4-1/2" EL (Cat #3)

1шт.

45

14818565

1-1/8" X 7" EL (Cat #2)

2шт.

45

14823565

1-7/16" X 7" EL (Cat #3)

2шт.

46

NSS

NOT SOLD SEPARAT

3/8" Sq. X 1-1/4" Key

1шт.

47

22531001

5/8" Hyd. Line

6шт.

48

17614020

BUSHING

7/8" Mach 14 Ga.

2шт.

49

17634010

BUSHING

2-1/8" Mach 14 Ga.

4шт.

50

14893486

2-1/8" X 10-3/4" Lg.

1шт.

51

219-86

LUBE NIPPLE,1/8" NPTF

NPT Straight

5шт.

52

16508289

1/2" X 8" Stop

1шт.
