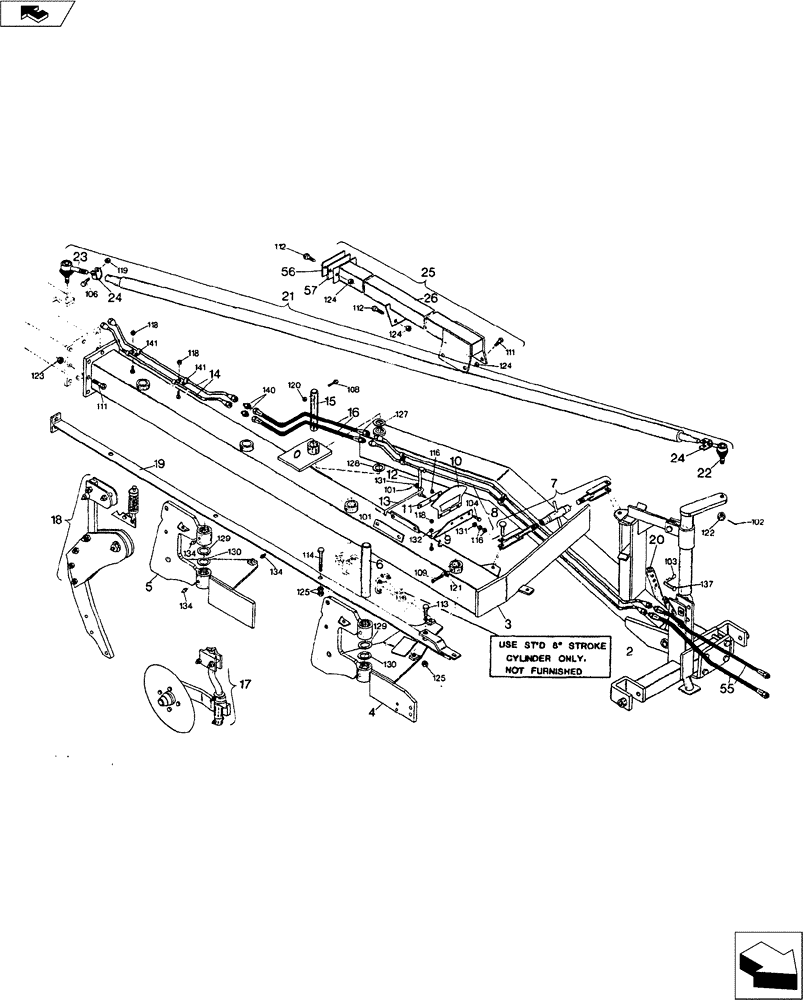

Запчасти Case IH 600 SERIES (39.100.01[01]) - MODEL 600 PLOW ASSEMBLY (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

4-Bottom Plow Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

5-Bottom Plow Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

6-Bottom Plow Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

7-Bottom Plow Complete (Not Shown)

1шт.

1

NSS

NOT SOLD SEPARAT

8-Bottom Plow Complete (Not Shown)

1шт.

2

49600020

1шт.

3

49601000

4-Bottom Main Frame

1шт.

3

49602000

5-Bottom Main Frame

1шт.

4

49612000

1шт.

5

49302000

3шт.

6

49535000

2-1/8" x 17" Lg.

4шт.

7

32404000

TURNBUCKLE

1шт.

8

49500050

1шт.

9

49537000

1шт.

10

30010000

1шт.

11

46541000

1шт.

12

49533000

1шт.

13

46534000

1шт.

14

25650804

5/8"

2шт.

15

14893494

2-1/8" x 11-3/4" Lg.

1шт.

16

25600840

1/2" x 40" Lg.

2шт.

17

49600060

1шт.

17

49109001

4шт.

17

49600050

1шт.

17

49324001

4шт.

18

49300190

Spring Shank Trip Assy.

5шт.

18

49400190

5шт.

19

49608000

4-Bottom Width Adjustment Angle

1шт.

19

49609000

5-Bottom Width Adjustment Angle

1шт.

20

49610000

1шт.

21

49625000

5-Bottom Tie Rod Assy.

1шт.

21

49626000

6-Bottom Tie Rod Assy.

1шт.

21

49627000

7-Bottom Tie Rod Assy.

1шт.

21

49628000

8-Bottom Tie Rod Assy.

1шт.

22

32729000

TIE-ROD

RH Tie Rod End

2шт.

23

32729001

TIE-ROD

LH Tie Rod End

2шт.

24

32739000

4шт.

25

49780000

7-Bottom Main Frame Support Assy.

1шт.

25

49790000

8-Bottom Main Frame Support Assy.

1шт.

26

49803000

7-Bottom Main Frame Support

1шт.

26

49804000

8-Bottom Main Frame Support

1шт.

27

49506000

1шт.

28

49508000

1шт.

29

49303000

1шт.

30

49515000

WHEEL,Assy, Gauge

Gauge Spindle Assy

1шт.

31

49568000

1шт.

32

28170900

HUB ASSY.

Q-709 Hub Assy

1шт.

33

10008151

8" x 15"

1шт.

34

10110174

WHEEL

15 x 10LB 8-Bolt Wheel

1шт.

35

NSS

NOT SOLD SEPARAT

9.5L x 15 8-Ply Tire

1шт.

36

25600860

1/2" Hyd. Hose x 60" Lg.

2шт.

37

49419000

1шт.

38

49536000

2-1/8" x 20"

1шт.

39

25030081

HYDRAULIC CYLINDER

3" x 8"

1шт.

40

49522000

1шт.

41

49304000

2" OD x 10-3/4" Lg.

2шт.

42

49306000

1шт.

43

49305000

1шт.

44

49308000

2-5/8" OD x 2.029 ID x 1-1/4" Lg.

2шт.

45

49584000

1шт.

46

49607000

1шт.

47

49986000

1шт.

48

49309000

1шт.

49

49310000

1шт.

50

28180300

HUB ASSY.

Q-803 Hub Assy

1шт.

51

10110154

WHEEL

10" x 15" Tire & Wheel

1шт.

52

10110150

WHEEL

10" x 15" x 6-Hole Wheel

1шт.

53

NSS

NOT SOLD SEPARAT

12.5L x 15 6-Ply Tubeless Tire

1шт.

53

NSS

NOT SOLD SEPARAT

12.5L x 15 6-Ply Tube Tire

1шт.

54

NSS

NOT SOLD SEPARAT

12.5L x 15 Inner Tube

1шт.

55

25600872

1/2" Hyd Hose x 72" Lg.

2шт.

56

49864000

16 Ga. Shim

2шт.

57

49865000

12 Ga. Shim

2шт.

101

14700201

1/16" Dia Cotter Pin x 1/2" Lg.

2шт.

102

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" Dia Cotter Pin x 1-1/2" Lg.

4шт.

103

14720411

COTTER PIN

PIN, COTTER 1/8" Dia Hair Pin x 2" Lg. #11

3шт.

104

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1/4" x 1" NC Hex. Bolt

2шт.

105

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3/8" x 3/4" NC Hex. Bolt

1шт.

106

16007080

7/16" x 2" NC Hex.

4шт.

107

16008134

BOLT

1/2" x 3-1/4" NC Hex. Bolt Gd 5

4шт.

108

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

1/2" x 3-1/4" NC Hex. Bolt Gd 5 ZP

1шт.

109

16810064

SET SCREW

5/8" x 1-1/2" NC Sq. Hd Cup Point Set Screw

7шт.

110

16012080

3/4" x 2" NC Hex.

2шт.

111

16012104

BOLT

3/4" x 2-1/2" NC Hex. Bolt Gd 5

15шт.

112

16012124

BOLT

3/4" x 3" NC Hex. Bolt Gd 5

2шт.

113

16901416

7/8" x 4-1/4" NC Hex.

2шт.

114

16014184

BOLT

7/8" x 4-1/2" NC Hex.

3шт.

115

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1" x 3" NC Hex. Gd 5

1шт.

116

14000400

1/4" NC

2шт.

117

86992211

NUT

1/4" NC Lock Nut (Not Shown)

2шт.

118

NSS

NOT SOLD SEPARAT

5/16" NC Hex Nut

4шт.

119

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

4шт.

120

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

5шт.

121

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

7шт.

122

425-1310

SLOTTED NUT,5/8"-18, G5

5/8" NF Slotted Nut

4шт.

123

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

12шт.

124

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

7шт.

125

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

5шт.

126

NSS

NOT SOLD SEPARAT

1" NC Hex. Nut

1шт.

127

17632020

BUSHING

2" Mach Bushing 10 Ga.

1шт.

128

17632010

GROOVED BUSHING

2" Mach Bushing 18 Ga.

1шт.

129

17634051

2-1/8" 10 Ga.

5шт.

130

17634010

BUSHING

2-1/8" Mach Bushing 14 Ga.

10шт.

131

NSS

NOT SOLD SEPARAT

1/4" Std. Flat Washer

2шт.

132

495-21038

WASHER,5/16"

Std. Flat Washer ZP 5/16"

2шт.

133

17407020

3/8" 3" OD

1шт.

134

219-86

LUBE NIPPLE,1/8" NPTF

1/8" NPT Self Tapping

15шт.

135

15302225

1/8" NPT 22-1/2

2шт.

136

NSS

NOT SOLD SEPARAT

3/8" Sq. Key x 3" Lg.

1шт.

137

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/4" Clevis Pin

2шт.

138

14816261

CLEVIS

1" x 3-1/4" Clevis Pin

2шт.

139

15000501

1/2"

2шт.

140

25708802

7/8" - 14 JICM x 7/8" - 14 JICM Adapter (Used W/5-Bottom Plow Only)

2шт.

141

22531001

5/8"

4шт.
