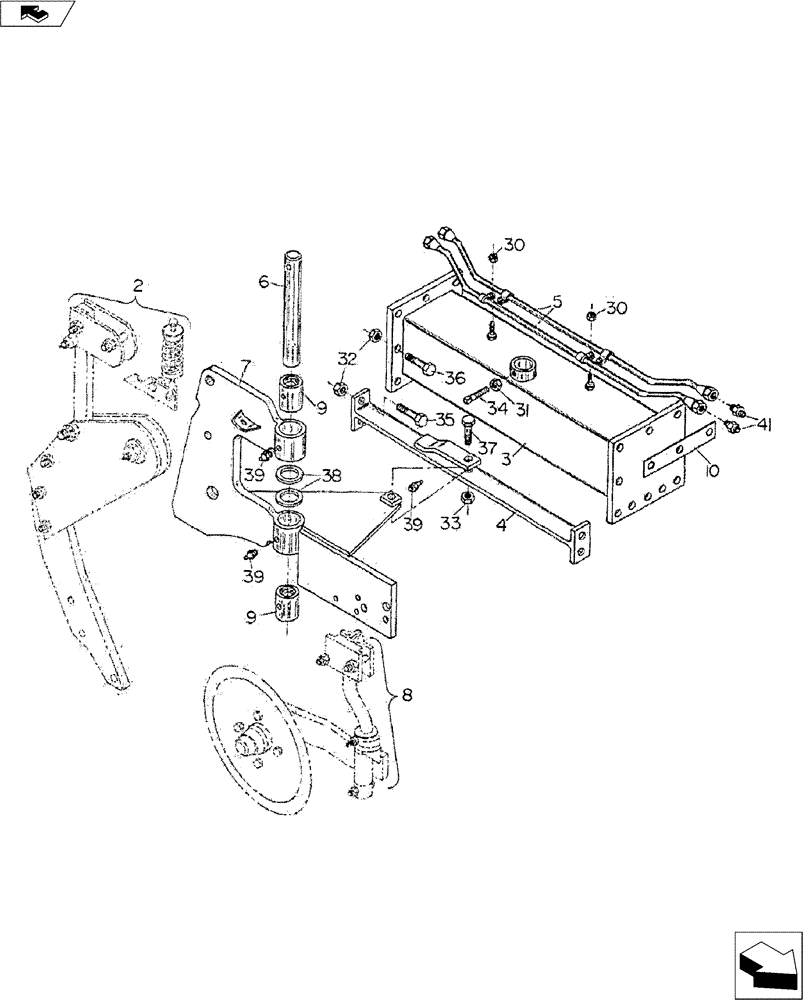

Запчасти Case IH 600 SERIES (75.200.06) - I -BOTTOM EXTENSION ASSEMBLY (75) - SOIL PREPARATION

1

49300100

w/16" (Not Shown)

1шт.

1

49400100

w/16" (Not Shown)

1шт.

2

49300190

1шт.

2

49400190

1шт.

3

49652000

1шт.

4

49653000

1шт.

5

25653701

2шт.

6

49535000

1шт.

7

49302000

1шт.

7

49417000

1шт.

8

49109001

1шт.

8

49324001

1шт.

9

44021320

2-1/8" ID x 3-1/2" Lg.

2шт.

10

49754000

.060 x 2-3/8" x 12" Lg.

1шт.

30

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Jam Nut

1шт.

31

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

12шт.

33

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

1шт.

34

16810064

SET SCREW

5/8" x 1-1/2" Sq. Head Cup Point Gd 5

1шт.

35

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

2шт.

36

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC Hex. Bolt Gd 5

10шт.

37

NSS

NOT SOLD SEPARAT

7/8" x 4-1/2" NC Hex. Bolt

1шт.

38

17634010

BUSHING

2-1/8" Narrow Rim Machine

2шт.

39

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

3шт.

40

22530801

1/2" (Not Shown)

4шт.

41

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

JICM Male Adapter

2шт.
