(75.200.03) - SPRING TRIP SHANK ASSEMBLY

Запчасти Case IH 600 SERIES (75.200.03) - SPRING TRIP SHANK ASSEMBLY (75) - SOIL PREPARATION

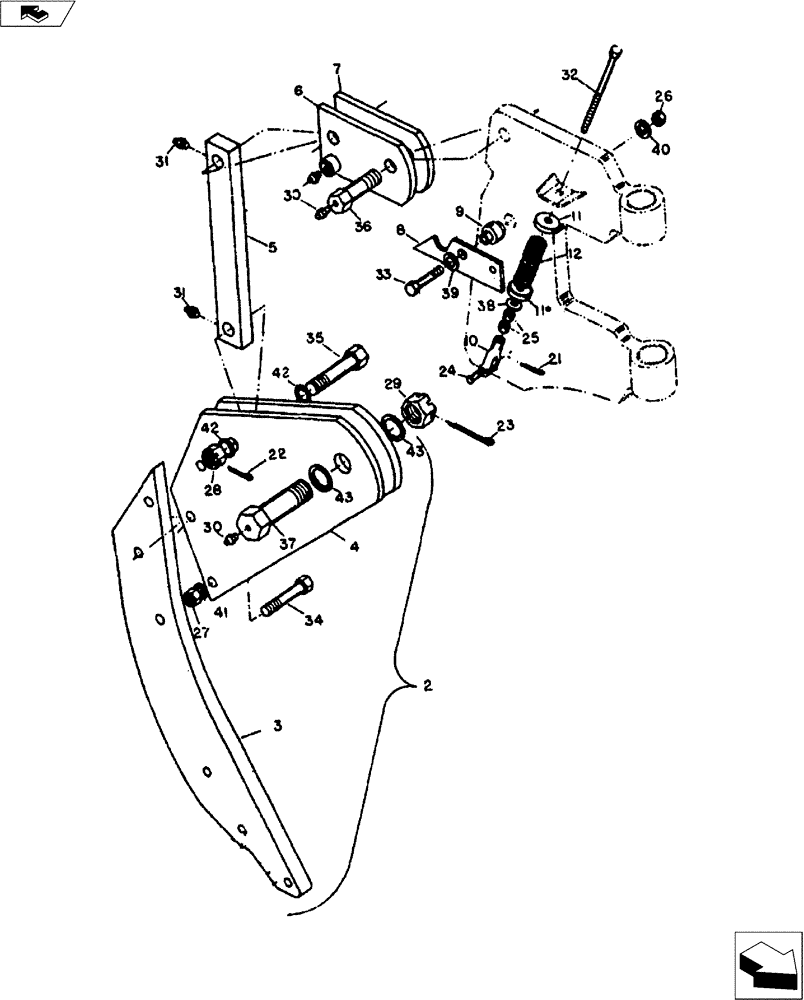

Схема запчастей Case IH 600 SERIES - (75.200.03) - SPRING TRIP SHANK ASSEMBLY (75) - SOIL PREPARATION
29
5
33
22
26
9
3
2
24
10
27
36
41
30
21
42
4
31
31
6
33
28
38
42
7
34
12
43
10
8
43
40
23
25
32
39
37
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

49556000

Includes Ref. 6-12 (Not Shown)

1шт.

2

49524000

Includes Ref. 3 & 4

1шт.

3

49579000

1шт.

4

49578000

1шт.

5

49539000

w/Zerks

1шт.

6

49562000

RH

1шт.

7

49563000

LH

1шт.

8

49580000

1шт.

9

49557000

1шт.

10

22706001

3/8"

1шт.

11

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

2шт.

12

24120701

COMPRESSION SPRING

.207 Wire

1шт.

21

NSS

NOT SOLD SEPARAT

3/32" x 1-1/2" Cotter Pin

1шт.

22

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

3шт.

23

NSS

NOT SOLD SEPARAT

1/4" X 3" Cotter Pin

1шт.

24

14806071

3/8" X 7/8"

1шт.

25

NSS

NOT SOLD SEPARAT

3/8" NF Hex. Nut ZP

2шт.

26

NSS

NOT SOLD SEPARAT

1/2" NC Heavy Hex. Nut

1шт.

27

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

3шт.

28

425-1216

SLOTTED NUT,Hex, 1"-8, G5

NC

3шт.

39

NSS

NOT SOLD SEPARAT

1/2" Std Flat Washer

1шт.

40

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" ID x 1-3/8" OD Heavy Duty

1шт.

41

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

3шт.

42

NSS

NOT SOLD SEPARAT

1" Machine Bushing

6шт.

43

NSS

NOT SOLD SEPARAT

1-1/2" Machine Bushing

2шт.
