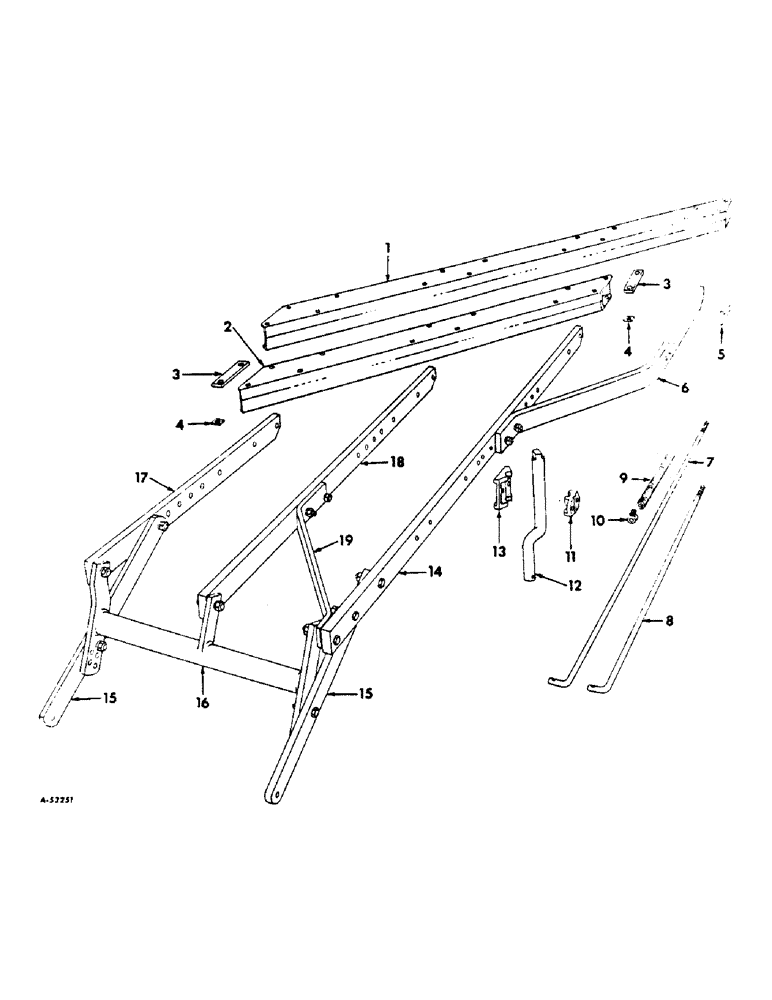

Запчасти Case IH 60 (D-02) - FRAME

1

525387R91

FRAME ASSY, 14 in. main, 4/3 furrow

1шт.

1

525388R91

FRAME

ASSY, 16 in. main, 4/3 furrow

1шт.

525184R1

5/8 x 5-1/4 CRG BOLT

10шт.

526453R1

5/8 x 6 CRG BOLT

2шт.

5/8 LOCK WASHER

12шт.

5/8 NUT

12шт.

2

524486R91

FRAME

ASSY, 14 in. main, 3 furrow

1шт.

2

524487R91

FRAME

ASSY, 16 in. main, 3 furrow

1шт.

519724R2

BOLT, 5/8-11 x 5-1/2 crg

2шт.

PO19397

5/8 x 5 CRG BOLT

6шт.

5/8 NUT

8шт.

5/8 LOCK WASHER

8шт.

3

524469R1

STRAP, main frame reinforcing, 4/3 furrow

1шт.

521530R1

5/8 x 5-3/4 CRG BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

3

524469R1

STRAP, main frame reinforcing

2шт.

519724R2

BOLT, 5/8 x 5-1/2 crg

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

102639

NUT,5/8"-11, G5

4шт.

4

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit, 9 for 3 furrow

1шт.

4

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

beam unit, 12 for 4/3 furrow

1шт.

5

524465R21

SPACER, frame rail, 3 for 3 furrow

1шт.

5/8 NUT

6шт.

5/8 x 3-1/4 CAP SCREW

6шт.

5/8 LOCK WASHER

6шт.

5

524465R1

SUPPORT

SPACER, frame rail, 4 for 4/3 furrow

1шт.

5

524923R1

PLATE

SPACER, 3rd frame rail, 4/3 furrow

1шт.

5/8 NUT

8шт.

5/8 x 3-1/4 CAP SCREW

8шт.

5/8 LOCK WASHER

8шт.

6

525366R1

RAIL, 14 in. frame offset, 4/3 furrow

1шт.

6

525367R1

RAIL, 16 in. frame offset, 4/3 furrow

1шт.

7

525472R1

ROD, lift, 4/3 furrow

1шт.

8

525352R1

ROD, lift, 3 furrow

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 crg

2шт.

NLS

NO LONGER SERVICED

7/16 hex

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

13A

SPRING, lift rod cushion

1шт.

10

1431BX

COLLAR CLAMP

COLLAR, w/set screw

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 x 3/4 CUP-PT SQ-HD SET SCREW

1шт.

11

524492R1

CLAMP

CAP, colter clamp, 4 for 4/3 furrow

3шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8 x 4-1/4 cap, 8 for 4/3 furrow, Course Threads

6шт.

102639

NUT,5/8"-11, G5

8 for 4/3 furrow 5/8"-11, G5

6шт.

12

522434R1

STEM

SHANK, colter, 4 for 4/3 furrow

3шт.

131170R1

PIN, 5/16 x 2-1/4 self-opening cot

3шт.

13

524456R3

CLAMP

colter, 4 for 4/3 furrow

3шт.

14

525357R1

RAIL, frame 3rd

1шт.

5/8 x 2-1/2 MACH BOLT, 3 FURROW ONLY

2шт.

5/8 LOCK WASHER

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8 x 3-1/2 cap, 4/3 furrow only, Course Threads

2шт.

5/8 NUT

2шт.

15

525356R3

BAR, hitch attaching

1шт.

5/8 NUT

4шт.

5/8 x 2-1/4 CAP SCREW

2шт.

5/8 x 2-3/4 CAP SCREW

2шт.

5/8 LOCK WASHER

4шт.

16

525381R91

SPREADER ASSY, 14 in. frame

1шт.

16

525382R91

SPREADER ASSY, 16 in. frame

1шт.

5/8 NUT

3шт.

5/8 x 2-1/2 CAP SCREW

2шт.

5/8 x 2 CAP SCREW

1шт.

7/16 x 1-1/4 CRG BOLT

2шт.

7/16 NUT

2шт.

5/8 LOCK WASHER

3шт.

7/16 LOCK WASHER

2шт.

17

525358R1

RAIL, frame 1st

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

2шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

18

525360R1

RAIL, frame 2nd

1шт.

5/8 x 2-3/4 MACH BOLT

2шт.

5/8 x 2-1/2 MACH BOLT

2шт.

5/8 NUT

4шт.

5/8 LOCK WASHER

4шт.

19

525363R1

BRACE, 14 in. frame rail

1шт.

19

525365R1

BRACE, 16 in. frame rail

1шт.
