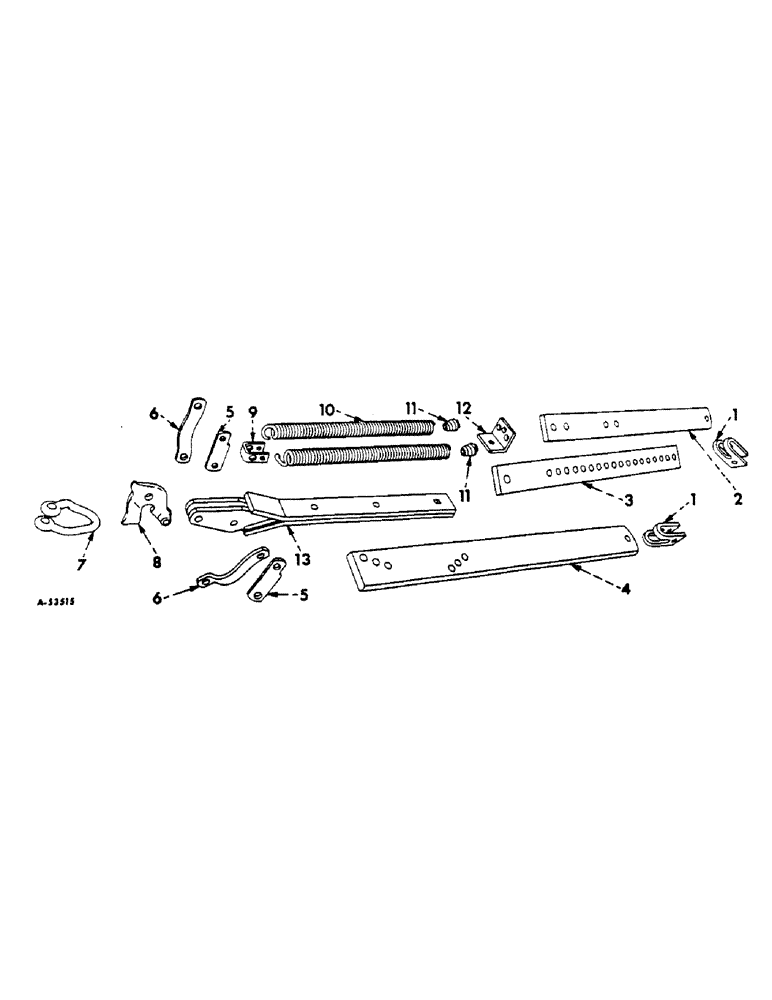

Запчасти Case IH 60 (D-24) - SPRING RELEASE HITCH

1

525411R1

CLEVIS, hitch rear

2шт.

18443R1

5/8 STOP NUT

2шт.

3/16 x 1 SELF-OPENING COT PIN

2шт.

5/8 x 2-11/16 HD PIN

2шт.

5/8 x 2-1/2 CAP SCREW

2шт.

578274R1

WASHER

21/32 x 1-1/4 x 11 GA WASHER

4шт.

2

525406R1

BRACE, diagonal rear

1шт.

3

525407R1

BRACE, diagonal front

1шт.

5/8 x 2 CAP SCREW

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

4

525412R1

BAR, hitch pull, 31-1/2 overall

1шт.

5

520900R1

LINK, short toggle

2шт.

SA4851

AXLE PIN

5/8 x 3-3/8 DLD-STD-HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

2шт.

21/32 x 1 x 11 GA WASHER

2шт.

6

PO16457

LINK, long toggle

2шт.

SA4851

AXLE PIN

5/8 x 3-3/8 DLD-STD-HD PIN

2шт.

SQA4852

5/8 x 4-1/8 DLD-STD-HD PIN

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

4шт.

7

PO26667A

CLEVIS

twisted

1шт.

SA3420

PIN, clevis

1шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

8

PO16459A

HOOK DRAFT

1шт.

SA3760

3/4 x 2-5/8 DLD-STD-HD PIN

1шт.

5/16 x 1-1/4 SELF-OPENING COT PIN

1шт.

9

SA4857

ANCHOR, double spring front

1шт.

9

SA4864

ANCHOR, single spring front

1шт.

10

PO179

SPRING, trip

2шт.

11

520201R1

PLUG, spring

2шт.

520950R1

5/8 x 2-1/2 MACH BOLT

2шт.

12

519013R2

BRACKET, spring

1шт.

5/8 x 2-1/2 NO. 3 PLOW BOLT

1шт.

5/8 LOCK WASHER

1шт.

13

519014R91

BAR, pull

1шт.

5/8 x 2-3/4 HEX-HD CAP SCREW

1шт.

5/8 x 4 HEX-HD CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

5/8 NUT

2шт.
